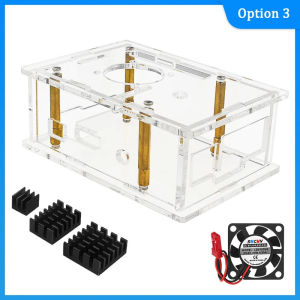

New Orange Pi 3B Acrylic Case: Transparent Enclosure with Active & Passive Cooling Shell and Optional Cooling Fan & Heatsink

Introduction to the Transparent Case for Orange Pi 3B

The new Orange Pi 3B acrylic case is a stylish and functional enclosure designed specifically for the Orange Pi 3B single-board computer. This high-quality transparent case offers an unobstructed view of the Orange Pi 3B's internal components, making it easy to monitor its performance and identify any potential issues. Compatible with the Orange Pi 3B (NEW), this acrylic case provides excellent protection against dust, moisture, and accidental damage.

Overview of the Acrylic Case

The transparent enclosure is made from high-quality acrylic material, which is both lightweight and durable. The case features a sleek, minimalist design that complements the Orange Pi 3B's compact form factor. The transparent case is easy to assemble and disassemble, allowing users to quickly access their Orange Pi 3B for maintenance or upgrades.

Key Features of the Transparent Enclosure

• Transparent Acrylic Construction: Made from high-quality acrylic material, this case offers a clear view of the Orange Pi 3B's internal components.
• Compatibility: Designed specifically for the Orange Pi 3B (NEW), ensuring a perfect fit.
• Protection: Provides excellent protection against dust, moisture, and accidental damage.
• Easy Assembly: Simple and quick assembly process, making it easy to access the Orange Pi 3B for maintenance or upgrades.

Understanding Active & Passive Cooling

The new Orange Pi 3B acrylic case comes with an optional cooling fan and heatsink, allowing users to choose between active and passive cooling methods. These cooling options help maintain optimal operating temperatures, ensuring the Orange Pi 3B runs smoothly and efficiently.

How the Cooling Fan Works

The cooling fan is a small, low-profile device that attaches to the bottom of the Orange Pi 3B acrylic case. It draws cool air into the case and expels warm air, effectively dissipating heat generated by the Orange Pi 3B's internal components. This active cooling method helps prevent overheating, extending the lifespan of the Orange Pi 3B and improving overall performance.

Benefits of Using an Optional Heatsink

The optional heatsink is a passive cooling solution that attaches to the top of the Orange Pi 3B's processor. By increasing the surface area of the processor, the heatsink helps dissipate heat more efficiently, reducing the risk of overheating. This passive cooling method is ideal for users who prefer a quieter operation or those who want to minimize power consumption.

Installation Guide for the Orange Pi 3B Case

To ensure a smooth installation process, we have provided step-by-step instructions for assembling the Orange Pi 3B acrylic case. These instructions cover the assembly of both the transparent enclosure and the optional cooling fan and heatsink.

Step-by-Step Instructions for Assembly

1. Remove the Protective Film: Before installing the Orange Pi 3B acrylic case, remove the protective film from the transparent enclosure.
2. Insert the Orange Pi 3B: Carefully insert the Orange Pi 3B into the acrylic case, making sure it is properly aligned with the mounting holes.
3. Attach the Cooling Fan (Optional): If using the cooling fan, attach it to the bottom of the acrylic case, ensuring it is securely fastened.
4. Attach the Heatsink (Optional): If using the heatsink, attach it to the top of the Orange Pi 3B's processor, ensuring it is securely fastened.
5. Secure the Acrylic Case: Once the Orange Pi 3B, cooling fan, and heatsink are in place, secure the acrylic case by screwing the side panels onto the mounting holes.

Tips for Proper Placement of the Cooling Fan & Heatsink

• Cooling Fan: Position the cooling fan so that it draws cool air into the case and expels warm air. This will help maintain optimal operating temperatures.
• Heatsink: Attach the heatsink directly to the top of the Orange Pi 3B's processor to maximize heat dissipation.

Enhancing Performance with the Transparent Enclosure

The new Orange Pi 3B acrylic case offers several benefits that can enhance the performance of your single-board computer. By providing excellent protection against dust, moisture, and accidental damage, this transparent enclosure helps extend the lifespan of the Orange Pi 3B. Additionally, the optional cooling fan and heatsink help maintain optimal operating temperatures, ensuring the Orange Pi 3B runs smoothly and efficiently.

Optimizing Cooling for Better Performance

To optimize cooling and improve the performance of your Orange Pi 3B, consider using both the cooling fan and heatsink. This combination of active and passive cooling methods will help maintain optimal operating temperatures, ensuring the Orange Pi 3B runs smoothly and efficiently.

Long-Term Maintenance Tips for the Acrylic Case

To ensure the longevity of your Orange Pi 3B acrylic case, follow these long-term maintenance tips:

• Regular Cleaning: Clean the acrylic case regularly using a soft, lint-free cloth to remove dust and debris.
• Avoid Excessive Heat: Keep the Orange Pi 3B away from sources of excessive heat, such as direct sunlight or hot surfaces.
• Monitor Performance: Regularly monitor the performance of your Orange Pi 3B to ensure it is running smoothly and efficiently.
• Replace Components: If necessary, replace worn or damaged components, such as the cooling fan or heatsink, to maintain optimal performance.
