YX140 Competitive Racing YX160 5-pin AC CDI Box with DIP Speed Limit Switch: A Comprehensive Guide

YX140 Competitive Racing YX160 5-pin AC CDI Box with DIP Speed Limit Switch: A Comprehensive Guide

Introduction to YX140 & YX160 Racing Parts

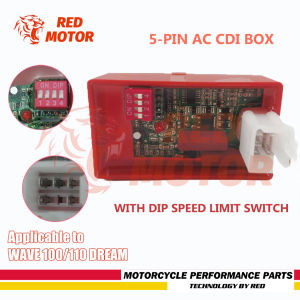

The YX140 Competitive Racing and YX160 racing parts are designed to enhance the performance and durability of your Wave 100/110 Dream 100 racing cars. One of the most crucial components in this regard is the 5-pin AC CDI box with DIP speed limit switch. This guide will walk you through the key features, installation process, benefits, and troubleshooting tips for this essential racing accessory.

Key Features & Specifications

  • Voltage: 12V
  • Special Function: DIP switch for customizable speed limit settings (4000-12000 RPM)
  • Material Type: Plastic + Metal
  • Weight: 0 kg
  • Dimensions: 0 inches (diameter), 0 inches (height), 0 inches (width)
  • Model Name: C90
  • Origin: Chinese Mainland

Compatible Models & Applications

The YX140 & YX160 CDI box is compatible with various racing vehicles, including:

  • Modified motorcycles
  • C100 racing ATVs
  • AT110
  • BIZ100
  • GN5
  • EX5
  • Dreams 1992-1998
  • WAVE100/110 (30410-KRS-901)
  • POP100 dial speed limit

It is suitable for many 5-stroke ATVs, off-road bicycles, go-karts, scooters, and motorcycles with engine sizes ranging from 50cc to 160cc. Check the number of pins and plug style to best match your CDI.

How to Install the YX140 & YX160 CDI Box

Installing the YX140 & YX160 CDI box requires some basic tools and materials. Follow this step-by-step guide to ensure a successful installation.

Tools & Materials Needed

  • Screwdrivers
  • Wrenches
  • Wire cutters
  • Wire strippers
  • Electrical tape
  • Soldering iron (optional)

Step-by-Step Installation Process

  1. Locate the existing CDI box on your racing vehicle and disconnect it from the wiring harness.
  2. Remove the old CDI box and install the YX140 & YX160 CDI box in its place.
  3. Connect the new CDI box to the wiring harness, ensuring proper alignment of the pins.
  4. Secure the CDI box in place using the appropriate screws and bolts.
  5. Test the installation by starting the engine and checking for proper ignition.

Benefits of Using the YX140 & YX160 CDI Box

The YX140 & YX160 CDI box offers numerous benefits for racing enthusiasts, including:

  • Enhanced Performance & Durability: High-quality materials and design ensure reliable performance and longevity.
  • Customizable Speed Limit Switch Settings: The DIP switch allows you to adjust the speed limit settings according to your preferences (4000-12000 RPM).

Troubleshooting Common Issues

Encountering issues with your YX140 & YX160 CDI box? Here are some common problems and their solutions:

CDI Box Not Functioning Correctly

  • Solution: Check the wiring connections and ensure proper alignment of the pins. If necessary, re-solder the connections and test again.

Incorrect Wiring Connections

  • Solution: Verify that the CDI box is properly connected to the wiring harness and that all pins are aligned correctly. Double-check the connections and test the installation again.

Conclusion & Final Thoughts

The YX140 Competitive Racing YX160 5-pin AC CDI box with DIP speed limit switch is an excellent choice for enhancing the performance and durability of your Wave 100/110 Dream 100 racing cars. With its customizable speed limit settings and high-quality construction, this racing accessory is sure to meet the needs of even the most demanding racers. We encourage you to try the YX140 & YX160 CDI box and experience the difference it can make in your racing performance.
