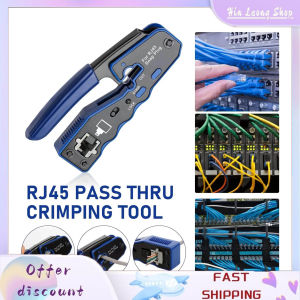

Pass Thru RJ45 Crimper Tool for Cat5 Cat5E Cat6 8P Cable Crimper Pressing Clamp Tongs CRIMPING TOOL

A Pass Thru RJ45 Crimper Tool is an essential device used by network technicians, electricians, and DIY enthusiasts to create reliable and secure connections between Ethernet cables and networking devices. This comprehensive guide will help you understand the key features, benefits, usage, and maintenance of this indispensable tool.

What is a Pass Thru RJ45 Crimper Tool?

A Pass Thru RJ45 Crimper Tool is a specialized device designed to terminate and crimp Cat5, Cat5e, and Cat6 Ethernet cables. It allows users to easily connect twisted-pair wires to RJ45 connectors, which are commonly used in networking applications.

Key Features

• Versatility: Compatible with Cat5, Cat5e, and Cat6 cables, allowing for a wide range of applications.
• Precision: Designed to ensure accurate crimping, reducing the risk of signal loss or interference.
• Ease of Use: Simple, intuitive design enables quick and efficient crimping.
• Durability: Built to withstand frequent use and heavy-duty environments.

Benefits of Using a Pass Thru RJ45 Crimper Tool

• Reliable Connections: Ensures secure connections between Ethernet cables and networking devices.
• Improved Efficiency: Streamlines the crimping process, saving time and reducing errors.
• Cost-Effective: Reduces the need for professional installation services.
• Enhanced Performance: Minimizes signal loss and interference, resulting in better network performance.

How to Use a Pass Thru RJ45 Crimper Tool

To get started with your Pass Thru RJ45 Crimper Tool, follow this step-by-step guide:

Step-by-Step Guide

1. Prepare the Cable: Strip the outer jacket of the Ethernet cable, exposing the twisted pairs inside.
2. Arrange the Wires: Untwist the wires and arrange them according to the desired wiring standard (e.g., T568A or T568B).
3. Insert the Connector: Place the RJ45 connector onto the cable, ensuring that the wires are properly aligned.
4. Crimp the Connector: Insert the cable and connector assembly into the crimping tool, then firmly press down to secure the connection.
5. Test the Connection: Verify the connection using a network tester or by connecting the cable to a networking device.

Tips for Efficient Use

• Keep the Tool Clean: Regularly clean the crimping tool to maintain optimal performance.
• Store Properly: Store the tool in a dry, cool place to prevent rust or damage.
• Follow Wiring Standards: Adhere to industry-standard wiring practices to ensure reliable connections.

Choosing the Right Pass Thru RJ45 Crimper Tool

When selecting a Pass Thru RJ45 Crimper Tool, consider the following factors:

Factors to Consider

• Compatibility: Ensure the tool is compatible with the types of cables you plan to work with.
• Durability: Look for a tool built to withstand frequent use and heavy-duty environments.
• Ease of Use: Choose a tool with an intuitive design that allows for quick and efficient crimping.
• Brand Reputation: Opt for a reputable brand known for producing high-quality crimping tools.

Popular Brands & Models

• Ideal Industries: Known for their reliable and durable crimping tools, Ideal Industries offers a wide range of Pass Thru RJ45 Crimper Tools.
• Greenlee: A trusted name in the industry, Greenlee provides high-quality crimping tools designed for professional use.
• Panduit: Panduit offers a variety of Pass Thru RJ45 Crimper Tools suitable for both residential and commercial applications.

Maintaining Your Pass Thru RJ45 Crimper Tool

To keep your Pass Thru RJ45 Crimper Tool in top condition, follow these maintenance tips:

Cleaning & Storage Tips

• Clean the Tool: Regularly clean the crimping tool using a soft cloth and mild cleaning solution.
• Store Properly: Store the tool in a dry, cool place to prevent rust or damage.
• Inspect Regularly: Periodically inspect the tool for signs of wear or damage, and replace any worn-out components.

Troubleshooting Common Issues

• Inconsistent Crimps: If crimps are inconsistent, check the alignment of the wires and ensure the tool is properly calibrated.
• Tool Malfunction: If the tool malfunctions, refer to the manufacturer's troubleshooting guide or contact customer support for assistance.

By following this comprehensive guide, you'll be well-equipped to use and maintain your Pass Thru RJ45 Crimper Tool effectively, ensuring reliable connections and optimal network performance.
