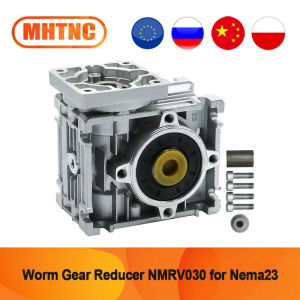

Worm Gear Reducer NMRV030 High Torque Gear Reducer Input 11mm Output 14mm Gear Ratio 5:1 to 80:1 Suitable for Nema23 Motor

Torque 2.6-24N. Model Number NMRV030. Continuous Current(A acording to the motor. Construction Shunt Wound. Type Worm. Protect Feature Drip-proof. Commutation Brush. Brand Name MHTNC. Efficiency IE 2. Output power: 0.06-0.18 kW. Origin Mainland China. Certification: CCC, CE. Output Torque 2.6-24N. Input Speed about 1400rpm. Material of housing aluminum. fit input shaft 11mm 9mm diameter input shaft. Output hole diameter 14mm Keyway 5mm. Output Speed 17.5-186rpm. default input shaft 11mm diameter input shaft. Package List: 1× RV030 For Nema238mm shaft Stepper Motor. 4× Mounting Bolt. 1×11mm to 8mm Shaft Sleeve. NMRV030. Model. Match Motor Flange. Rabbet. Distance of Diagonal Screw. Length. Input Bore Size. Output Bore Size. NMRV030.5757.38.66.20.11(mm). 14mm. 9090.83.104.27.104*104.94/95.120.30
