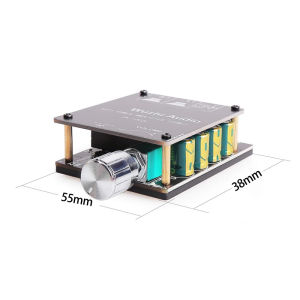

ZK-502L 2.1 Channel Bluetooth 5.0 Subwoofer Amplifier Board 50WX2 Power Audio Stereo Board Bass

Introduction to ZK-502L

The ZK-502L is a high-performance 2.1 channel Bluetooth 5.0 subwoofer amplifier board that delivers exceptional sound quality and a powerful audio experience. This versatile stereo board bass is designed to work with a wide range of speakers and audio devices, making it an ideal choice for audiophiles and music enthusiasts alike.

Key Features of ZK-502L

• Power Supply Voltage: 5 ~ 24V
• Adapted Speaker: 30W ~ 200W, 4Ω, 8Ω
• Number of Channels: Left and right dual-channel (stereo)
• Bluetooth Version: 5.0
• Bluetooth Transmission Distance: 15 meters (no cover)

How to Choose the Right Audio Component

When selecting an audio component like the ZK-502L, consider factors such as power supply voltage, speaker compatibility, number of channels, Bluetooth version, and transmission distance. These specifications play a crucial role in determining the audio performance and overall user experience.

Setup and Configuration

Connecting ZK-502L to Your Speakers

To connect the ZK-502L to your speakers, follow these steps:

1. Connect the left and right channel wires to the corresponding terminals on the amplifier board.
2. Connect the subwoofer wire to the designated terminal.
3. Power on the amplifier board using the appropriate voltage source.

Configuring Bluetooth Connection

Configuring the Bluetooth connection is straightforward. Simply turn on the Bluetooth feature on your audio device, search for available devices, and select the ZK-502L from the list. Once connected, enjoy your favorite music or audio content with crystal-clear sound quality.

Performance and Sound Quality

Understanding the Impact of 2.1 Channel Audio Board

A 2.1 channel audio board, like the ZK-502L, offers a significant advantage over traditional stereo systems by providing a dedicated subwoofer channel. This enhances the low-frequency response, resulting in a richer and more immersive audio experience.

Maximizing Sound Output with 50WX2 Power Amplifier

The ZK-502L's 50WX2 power amplifier is capable of delivering up to 100W of total power output. To maximize sound output, ensure that the speakers are compatible with the specified power range and impedance values. Proper speaker selection and placement can significantly improve the overall audio performance.

Troubleshooting Common Issues

Dealing with Connectivity Problems

If you encounter connectivity issues, try the following solutions:

• Restart both the ZK-502L and your audio device.
• Check if there are any obstructions between the devices that may interfere with the Bluetooth signal.
• Ensure that the power supply voltage is within the specified range.

Resolving Volume and Sound Quality Concerns

To address volume and sound quality issues, consider these troubleshooting steps:

• Adjust the volume settings on both the ZK-502L and your audio device.
• Verify that the speakers are properly connected and functioning.
• Experiment with different speaker placements to optimize sound quality.
