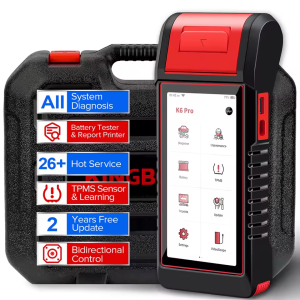

Kingbolen K6 Pro All System OBD2 Scanner New Car Diagnostic Tool With Printer Function And 26 Reset Service EC Coding Reader

4-in-1 Function Professional car Diagnostic tools, KINGBOLEN K6 PRO. All System Car diagnostic Tools with 26 Reset Function, ECU Coding, Active Test, support DOIP, CAN FD, Online coding for VW for Audi, tire pressure detection, thermal printing function, Battery detection function, 2 Years Free Update, AutoAuth FCA SGWThe K6 Pro is a high-tech diagnostic tool that covers system diagnosis, battery testing, TPMS functions and a built-in printer. This 4-in-1 device diagnosis including detecting battery health and matches. Moreover, it provides full TPMS function to detect and clear faults, like TPMS detection, learning, and programming to offer all-around protection for your car. A built-in printer that allows for on-the-spot printing of diagnostic reports.Supports 25 languagesItalian, English, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romanian, Serbian, Finnish, Swedish, Czech, Chinese Simplified, Chinese TraditionalKINGBOLEN K6 PRO Supports CAN FD and DOIP protocol , it supports For GM after 2020 and other New cars ! Also Supports FCA AutoAuth.CANFD :it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year Supports For Chevrolet Tracker 2020 year Supports For Chevrolet Suburban 2021 year Supports For Chevrolet Tahoe 2021 year Supports For Buick Supports For Cadillac Escalade 2021 year Supports For Cadillac Escalade 2021 year Supports For GMC Yukon 2021 year Supports For GMC Yukon XL 2021 year Supports For Holden Supports For DAEWOO Supports For Alpheon Supports For Ravon Supports For Pontiac Supports For Saturn Supports For HummerDOIPWith Diagnostics over DOIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes KINGBOLEN K6 PRO save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), for Volvo models (2018 later), for Land Rover & for Jaguar models (2017 later).

( Note: this is car list that CANFD and DIOP supports, KINGBOLEN K6 PRO also supports other cars, more than about 100+ brands, like for bmw, for vw, for ford etc, there has the detailed car list in the following description, you can check ）FCA/ SGW AutoAuth (need to purchase FCA account by yourself, Brand LAUNCH)Supports 2017 and later For Chrysler / For Dodge / For Alfa Romeo / For Jeep / For Fiat vehicles .

Note: This Function need have the account in FCA Website first .All Systems Diagnostic ToolThe Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1. PCM (Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3. BCM (Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition. Electric Windows, Telephone, and more...

4. Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.ECU Coding: Customize Your Car in Minutes* Same as other LAUNCH X431 High-end OE-level scan tool, K6 PRO has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed.

• Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.

• Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start-Stop function, etc.

• Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.

• Reprogram the adaptive data for certain components after repairs or replacements.

• ECU Online Coding is available for BMW, VW, Porsche, Renault, etc.

Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.What is Full Bi-directional Control (ACTIVE TEST) function?* With this diagnostic tool's Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle's control;

• [Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

• Available test varies by the vehicle manufacturer, year, and model.KINGBOLEN K6 PRO Supports TPMS Programming FunctionThis module provides the ability to activate most OEM/Universal TPMS sensors, reprogram sensor IDs, retrieve/clear TPMS DTCs and relearn sensors, helping technicians quickly find out faulty TPMS and turn off MILs.

In general, the following steps are required for the TPMS detection.

1. Enter TPMS.
2. Select vehicle manufacturer.
3. Select vehicle model and year.
4. Select the TPMS function*.
5. Follow the on-screen instructions to proceed.

Note:

• For indirect TPMS vehicle, only the Learning function is supported.
• For vehicle using Direct TPMS, it generally includes: Activation, Programming, Learning and Diagnosis.
• The available TPMS functions may vary for different vehicles being serviced.Activate TPMS SensorThis function allows users to activate TPMS sensor to view sensor data such as sensor ID, tire pressure, tire frequency, tire temperature and battery condition.Program TPMS SensorThis function allows users to program the sensor data to the specific sensor and replace faulty sensor with low battery life or one that is not functioning.

There are three options available for programming the sensor: Auto Create, Manual Create and Copy by Activation.TPMS LearningThis function is used to write the newly programmed sensor IDs into the vehicle’s ECU for sensor recognition.

• Relearn operation applies only when the newly programmed sensor IDs are different from the original sensor IDs stored in the vehicle’s ECU.

There are three ways available for Relearn: Static Learning, Self-Learning and Relearn by OBD.TPMS DiagnosisThis function enables user to write sensor IDs to vehicle, read IDs from vehicle, read/clear TPMS codes, read TPMS live data etc.

Note: This function varies from vehicle to vehicle. While performing this function, a proper connection between the vehicle and the tool is required.Battery MatchingThis function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

It needs to be performed in the following cases:

1. The main battery is replaced.
2. The battery monitoring sensor is replaced.Battery Test (Out-of-car Inspection & In-car Inspection)Battery test is specifically designed to help car owner, repair workshop, battery factory determine whether the battery is normal or not. It supports various battery standards and specifications, including CCA, DIN, IEC, EN, JIS, SAE and GB etc.

• There are mainly 5 battery states as follows:

1. Good battery - Indicates that the battery is normal.
2. Replace battery - Indicates that the battery is aged or becomes rejected, or battery life cycle is nearly exhausted. In this case, battery voltage appears to be normal, but battery itself is not well, i.e. battery polarity board has been completely vulcanized or aged. Please replace battery immediately.
3. Good-recharge - Stands for low battery. The battery is good itself.
4. Charge-retest - It is better for a few batteries to be fully charged before testing in order to avoid judging in error under special conditions.
5. Bad cell - Indicates one of the battery cells is bad and cannot work normally, but for which one is bad, it can’t be verified. In this case, battery voltage is generally lower than 11V, mainly resulting from internal circuitry damage, such as short circuit, open circuit, dummy weld etc.Test results can be printed directly via the built-in thermal printer26+ Hot Reset FunctionsThis module provides an easy dial to quickly access the most commonly performed service functions as follows.

Please Note that not all vehicles are suitable for all special features1. Oil Reset ServiceThis function enables you to reset the oil service for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.

It needs to be performed in the following cases:

1. If the service lamp is on, run car diagnostics first for troubleshooting. After that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.

2. If the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.2. Electronic Parking Brake ResetThis function enables you to reset the brake pad after replacing the brake pad. It needs to be performed in the following cases:

3. The brake pad and brake pad wear sensor are replaced.

4. The brake pad indicator lamp is on.

5. The brake pad sensor circuit is short, which is recovered.

6. The servo motor is replaced.3. Steering Angle CalibrationThis function enables you to reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body.4. ABS BleedingThis function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS). It needs to be performed in the following cases:

7. When the ABS contains air.

8. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.5. Tire Pressure Monitor System ResetThis function enables you to quickly look up the tire sensor IDs from the vehicle’s ECU, reset tire pressure and turn off the tire pressure MIL.

It needs to be performed in the following cases: Tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.6. Gear LearningThis function enables you to perform tooth learning for the car, to turn off the MIL. It needs to be performed in the following cases:

1. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced.
2. The DTC 'tooth not learned' is present.7. IMMO ServiceThis function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

It needs to be performed in the following cases: When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.8. Injector CodingThis function enables you to write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, so as to more accurately control or correct cylinder injection quantity.

It needs to be performed in the following cases: After the ECU or injector is replaced.9. Battery Maintenance System ResetThis function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

It needs to be performed in the following cases:

1. The main battery is replaced.
2. The battery monitoring sensor is replaced.10. Diesel Particulate Filter (DPF) RegenerationThis function enables you to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

It needs to be performed in the following cases:

1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MIL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.11. Electronic Throttle Position ResetThis function enables you to make initial settings to throttle actuators and returns the learned values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.12. Gearbox MatchingThis function enables you to complete the gearbox self-learning to improve gear shifting quality.

It needs to be performed in the following cases: When the gearbox is disassembled or repaired.13. AFS Reset (Adaptive Front-lighting System)This function enables you to initialize the adaptive headlamp system.14. Sunroof InitializationThis function enables you to set the sunroof lock off,closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car, etc.15. Suspension CalibrationThis function enables you to adjust the height of the body.

lt needs to be performed in the following cases:

1. When replacing the body height sensor, or control module in the air suspension system.

2. When the vehicle height is incorrect.16. EGR AdaptionThis function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.17. Seats CalibrationThis function is applied to match the seats with memory function that are replaced and repaired.18. Tyre ResetThis function is used to set the size parameters of the modified or replaced tire.19. Coolant BleedUse this function to activate the electronic water pump before venting the cooling system.20. AdBlue Reset (Diesel Engine Exhaust Gas Filter)After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.21. NOx Sensor ResetNOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

3. Windows Calibration This function is used to perform door window matching to recover the ECu initial memory, and recover the automatic ascending and descending function of power window.

4. Language Change This function is used to change system language of vehicle center console.

5. AF Reset This function is applied to set or learn airlfuel rate parameters.

6. Transport Mode To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

7. Stop and Start Reset This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).KINGBOLEN K6 PRO Supports Print FunctionKINGBOLEN K6 PRO is with printer design, it can print the diagnose report directly.

it is thermal printing.

The print paper is with 57mm Width and 30mm diameterKINGBOLEN K6 PRO Other Function1. Auto VIN Scan 2. Data Record & Playback 3. Diagnostic Report 4. DTC Lookup 5. Online Feedback 6. Remote Diagnose .KINGBOLEN K6 PRO Supports Car ListAmercian Cars : For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For FIAT (BRAZIL), For FORD, For FORD (AUSTRALIA), For GM, For GM (BRAZIL), For JEEP, For LINCOLN

Europe Cars : For ABARTH, For ALFA ROMEO, For ALFA ROMEO, For AUDI, For BENTLEY, For BMW, For BUGATTI, For CITROEN, For DACIA, For DR, For FORD (EUROPE), For FERRARI, For FIAT, For GAZ, For OPEL, For IVECO, For IZH, For JAGUAR, For LAMBORGHINI, For LANCIA, For LAND ROVER, For MASERATI, For MAYBACH, For MERCEDES-BENZ, For MINI, For OPEL, For PAZ, For PEUGEOT, For PORSCHE, For RENAULT, For ROLLS ROYCE, For ROVER, For SAAB, For SEAT, For SEAZ, For SKODA, For SMART, For SPRINTER, For UAZ, For VAUXHALL, For VAZ, For VOLVO, For VW, For VW_CV, For ZAZ

Asia Cars : For ACURA, For DAEWOO, For DAIHATSU, For HOLDEN (AUSTRALIA), For HONDA, For HYUNDAI, For IKCO, For INFINITI, For ISUZU, For KIA, For LEXUS, For LUXGEN, For MAHINDRA, For MAHINDRA (INDIAN), For UNITED PAKISTAN, For MARUTI, For MARUTI (INDIAN), For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For GTR (NISSAN), For PERODUA, For PERODUA (MALAYSIA), For PROTON, For PROTON (MALAYSIA), For RENAULTSAMSUNG, For SAIPA, For SSANGYONG, For SUBARU, For SUZUKI, For TATA, For TATA (INDIAN), For ISuzu (THAILAND), For TOYOTA

China Cars : For SENOUABAIC), For WEIWANGBAIC), For BJEV, For BAIC, For BRILLIANCE, For BYD, For CHANGAN, For CHANGHE, For BUICK(CHINA), For CHERY, For CHANGHESUZUKI, For DFCITROEN, For FENGGUANG(DONGFENG), For ECUAID, For FAW(TIANJIN), For FOTON, For JINLONG, For GONOW, For GWM, For HAFEI, For HAIMA, For JAC, For JAC REFINE, For SHINERAY, For JMC, For JOYLONG, For LIFAN, For MG (SAIC), For MAXUS, For SGM, For SOUEAST, For SPARK, For TRUMPCHI, For SGMW, For DFSK, For XINKAI, For POLARSUN, For ZX AUTO, For ZOTYEKINGBOLEN K6 PRO Parameters* Operating system: Android 10

• Memory: 4GB
• Storage: 64GB
• Battery: 4500mAh/7.6V (about 9000mAh/3.7V)
• Screen: 5.99 inch capacitive touch screen with a resolution of 720 x 1440 pixels
• Camera: Rear-facing 8.0MP camera
• Wi-Fi: 2.4GHz/5GHz dual bandPackage List of KINGBOLEN K6 PRO1PC * Main Unit 1PC * Diagnostic cable 1PC * Cigarette lighter cable 1PC * Battery cable clamps 1PC * External power adaptor 1PC * OBD I adaptor box 1PC * Non-16pin adaptor cable kit 1PC * USB cable 1PC * Password envelope 1PC * User manual
