In-Wall Touch Screen Controller: L9 Zigbee Hub & Home Assistant Gateway

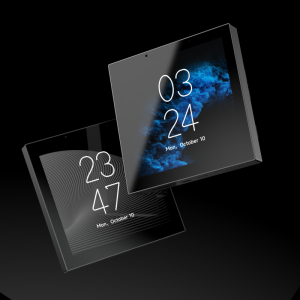

Introduction to the 4-Inch Smart Home Control Panel

Transform your space with the 4-inch All-in-One Smart Hub, designed to control, customize, and command your smart home devices seamlessly. This powerful device is equipped with a Linux system for enhanced stability and smooth operation. It offers dual-channel relays with a total load capacity of 600W (300W per channel), allowing you to manage air conditioning, lighting, curtains, and more effortlessly.

The 4-inch HD color display (480*480) with anti-fingerprint sandblasting surface treatment ensures a sleek and stylish design that complements any luxury smart home, hotel automation, or commercial IoT solution. This multifunctional hub integrates a smart gateway, touch panel, and switches, reducing clutter and improving efficiency.

Key Features of the All-in-One Smart Hub

• Powerful Linux System: Equipped with a Linux system for enhanced stability and smooth operation.
• Dual-Channel Relays: Total load capacity of 600W (300W per channel).
• Stylish Design: 4-inch HD color display (480*480) with anti-fingerprint sandblasting surface treatment.
• Multifunctional Hub: Integrates smart gateway, touch panel, and switches.

Setting Up Your Smart Home Automation System

Connecting the L9 Zigbee Hub to Your Network

To get started, connect the L9 Zigbee Hub to your network by following these steps:

1. Connect the power adapter to the L9 Zigbee Hub.
2. Connect the Ethernet cable to the hub and your router.
3. Power on the hub and wait for it to connect to your network.

Integrating the Touch Screen Controller with Home Assistant

Once the L9 Zigbee Hub is connected to your network, integrate it with Home Assistant by following these steps:

1. Install the Home Assistant app on your smartphone or tablet.
2. Log in to your Home Assistant account.
3. Add the L9 Zigbee Hub to your Home Assistant gateway.

Adding Zigbee Wi-Fi Smart Switches to Your Network

Expand your smart home network by adding Zigbee Wi-Fi smart switches to your network. Follow these steps to add a new switch:

1. Press and hold the reset button on the switch for 5 seconds.
2. Open the Home Assistant app and select 'Add Device'.
3. Select 'Zigbee' and wait for the device to connect.

Enhancing Your Smart Home Experience

Customizing Your Home Assistant Gateway Settings

Customize your Home Assistant gateway settings to suit your preferences. You can adjust settings such as:

• Scene Settings: Create custom scenes to control multiple devices at once.
• Automation Settings: Set up automated routines to control devices based on specific triggers.
• Voice Control Settings: Integrate voice control with popular assistants like Amazon Alexa or Google Assistant.

Controlling Multiple Devices with the Touch Screen Controller

Use the touch screen controller to control multiple devices effortlessly. Simply swipe through the interface to access different device controls and settings.

Expanding Your Smart Home Network with Additional Devices

Expand your smart home network by adding more devices, such as sensors, cameras, and thermostats. Simply follow the same process as adding a Zigbee Wi-Fi smart switch to integrate new devices into your Home Assistant gateway.
