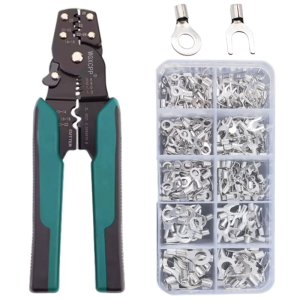

320pcs Boxed Crimp Terminal Electrical Connector U/O Shaped Wire Connector Cable Termination

Technical Specifications of SNB RNB Model

The SNB RNB model crimp terminals are designed for high-quality electrical connections and are made from tin-plated copper. They have a contact resistance of less than 3mΩ, making them ideal for various applications.

Material Composition and Production Process

The material composition of these crimp terminals consists of tin-plated copper, which provides excellent conductivity and corrosion resistance. The production process involves cold pressing, ensuring a precise and reliable connection.

Contact Resistance and Application

The SNB RNB model crimp terminals have a contact resistance of less than 3mΩ, making them suitable for applications requiring low resistance and high reliability. These terminals are widely used in cable termination, wiring harnesses, and other electrical systems.

Choosing High-Quality Crimping Tools

To ensure optimal performance of the SNB RNB model crimp terminals, it is essential to use high-quality crimping tools. Here are some key features to look for:

• Precision: A good crimping tool should provide accurate and consistent crimps, ensuring a reliable connection.
• Durability: The tool should be made from high-quality materials to withstand repeated use and harsh environments.
• Ease of Use: A well-designed crimping tool should be easy to operate, even for those with limited experience.

Some recommended crimping tools for optimal performance include:

• Hakko Crimping Tool: Known for its precision and durability, the Hakko crimping tool is a popular choice among professionals.
• Weller Crimping Tool: Another reliable option, the Weller crimping tool offers a comfortable grip and easy operation.

How to Properly Install Crimp Terminals

Proper installation of crimp terminals is crucial for ensuring reliable electrical connections. Follow this step-by-step guide to install the SNB RNB model crimp terminals correctly:

1. Strip the insulation from the wire end, exposing the necessary length of conductor.
2. Insert the exposed wire into the crimp terminal, ensuring it is fully seated.
3. Use a high-quality crimping tool to apply pressure to the terminal, creating a secure connection.
4. Inspect the crimp for proper formation and ensure there are no gaps or loose connections.

If you encounter any issues during installation, refer to the troubleshooting guide below:

• Loose Connection: If the wire is not fully inserted into the terminal, reinsert and recrimp.
• Over-Crimped Terminal: If the terminal is over-crimped, it may damage the wire. In this case, cut the wire and start again.

Benefits of Using U/O Shaped Electrical Connectors

The SNB RNB model crimp terminals offer several benefits, including enhanced electrical performance, improved durability, and reliability.

Enhanced Electrical Performance

With a contact resistance of less than 3mΩ, the SNB RNB model crimp terminals provide excellent electrical performance, ensuring efficient power transfer and minimal energy loss.

Improved Durability and Reliability

Made from tin-plated copper, these crimp terminals offer superior corrosion resistance and long-lasting performance. Their robust design ensures they can withstand harsh environments and repeated use, making them a reliable choice for various applications.
