ESD Soldering Mat & Heat Resistant Soldering Station: A Comprehensive Guide

Understanding the Product

Key Features & Specifications

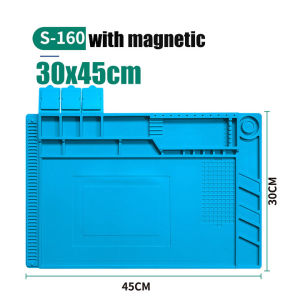

The ESD Soldering Mat Repair Pad Insulation Heat Resistant Soldering Station Silicon Work Pad Desk Platform Phone Repair Tool Kit is a must-have for any electronics enthusiast or professional. This comprehensive kit includes a heat-resistant soldering station and an ESD (Electrostatic Discharge) soldering mat designed to protect sensitive electronic components during the soldering process.

Key features include:

• Color: Blue
• Material: Silicone
• Product Size: Approximately 45 x 30 cm
• Weight: Approximately 0.5 kg

Benefits of Using This Product

Using this ESD soldering mat and heat-resistant soldering station offers numerous benefits for both beginners and experienced users alike. Some of these benefits include:

• Protection from static electricity: The ESD mat ensures that static electricity does not damage sensitive electronic components during soldering.
• Heat resistance: The heat-resistant soldering station allows for safe handling of hot soldering irons and other tools.
• Ease of use: The silicone material makes it easy to clean and maintain the work surface.
• Versatility: This kit can be used for various tasks, including phone repair, circuit board assembly, and more.

Setting Up Your Workspace

Choosing the Right Location

When setting up your workspace, consider the following factors:

• Space: Ensure there is enough room for the ESD soldering mat and heat-resistant soldering station, as well as any other necessary tools and equipment.
• Lighting: Good lighting is essential for visibility during soldering tasks. If possible, choose a location with natural light or install additional lighting fixtures.
• Ventilation: Soldering produces fumes that can be harmful if inhaled. Choose a well-ventilated area or use a fume extractor to minimize exposure.

Installing the ESD Soldering Mat

To install the ESD soldering mat, follow these steps:

1. Unroll the mat onto a flat surface.
2. Connect the ground wire to a suitable ground point, such as a grounded outlet or a dedicated grounding mat.
3. Place the heat-resistant soldering station on top of the ESD mat.

Using the Heat Resistant Soldering Station

Preparing for Soldering

Before beginning any soldering tasks, ensure that you have all necessary tools and equipment ready. This includes:

• Soldering iron
• Solder wire
• Flux
• Wire cutters
• Helping hands or third-hand tool

Performing Soldering Tasks

When performing soldering tasks, follow these guidelines:

1. Heat the soldering iron to the appropriate temperature for the type of solder being used.
2. Apply flux to the joint to improve solder flow.
3. Hold the solder wire against the joint while heating with the soldering iron.
4. Remove the solder wire and allow the joint to cool and solidify.

Maintaining Your Tools & Equipment

Cleaning & Storing the ESD Soldering Mat

To maintain the ESD soldering mat, follow these steps:

1. Wipe the mat with a damp cloth to remove any debris or residue.
2. Allow the mat to air dry before storing.

Caring for Your Heat Resistant Soldering Station

To care for your heat-resistant soldering station, follow these guidelines:

1. Unplug the soldering iron when not in use.
2. Store the soldering iron in a safe location away from flammable materials.
3. Clean the tip of the soldering iron regularly using a damp sponge or brass wool.

By following these guidelines, you can ensure that your ESD soldering mat and heat-resistant soldering station remain in good condition and provide reliable performance for years to come.
