DC SAE Connector Cable & Solar Panel Power Adapter: A Comprehensive Guide

Understanding the DC SAE Connector Cable

Conductor & Insulation Materials

The DC SAE connector cable features stranded tinned copper conductors and halogen-free crosslinked polyolefin insulation and sheath materials. This combination ensures excellent electrical conductivity and durability against environmental factors.

Temperature & Voltage Ratings

The cable has a rated temperature range of -40°C to +90°C, making it suitable for both extreme cold and hot conditions. It can handle a rated voltage of 1 kV DC and 0.6 kV AC, providing reliable power transmission.

Waterproof & Weathering Resistance

The DC SAE connector cable boasts IP67 waterproof grade and strong sun resistance, ensuring optimal performance even in challenging outdoor environments. The halogen-free crosslinked polyolefin sheath material further enhances its weathering resistance.

Exploring the Solar Panel Power Adapter

Wire Extension Cord Plug Specifications

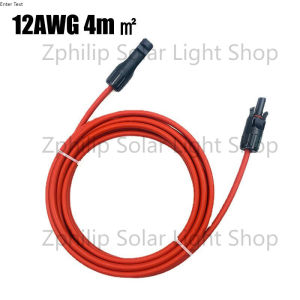

The solar panel power adapter comes with a 4mm² wire extension cord plug, featuring a male black M4 connector and a female red M4 connector. This design enables easy connection and disconnection of the solar panel to the battery.

SAE 2 Pin Battery Connector

The solar panel power adapter is equipped with a SAE 2 pin battery connector, ensuring secure and reliable power transfer between the solar panel and the battery.

10AWG/12AWG Wire Extension

Available in 10AWG and 12AWG wire extensions, the solar panel power adapter offers flexibility in choosing the appropriate wire gauge based on your specific power requirements.

Technical Parameters of DC SAE Connector Cable & Solar Panel Power Adapter

Cable Core & Cross-Section Area

For a 10AWG (4mm²) cable, the nominal cross-section area is 4mm², with a single cable core. The diameter of wires is 84/0.3 mm, and the thickness of insulation and sheath is ≥0.5 mm.

Diameter & Thickness of Insulation & Sheath

The outer diameter of the cable ranges from 6.8 mm to 7.2 mm, providing ample protection against external factors.

Conductor Resistance & Voltage Test

The conductor resistance at 20°C is ≤3.39 Ω/km, and the voltage test on the completed cable is 6.5 kV/min, ensuring reliable power transmission.

How to Use DC SAE Connector Cable & Solar Panel Power Adapter

Proper Installation Techniques

To install the DC SAE connector cable and solar panel power adapter, first, connect the male black M4 connector to the positive terminal of the battery and the female red M4 connector to the negative terminal. Then, attach the SAE 2 pin battery connector to the solar panel.

Troubleshooting Common Issues

If you encounter any issues during installation, check the connections for loose or damaged wires. Ensure the connectors are securely fastened and the polarity is correct.

Maintaining Optimal Performance

Regularly inspect the cable and adapter for any signs of wear or damage. Clean the connectors with a dry cloth to prevent corrosion and maintain optimal performance.
