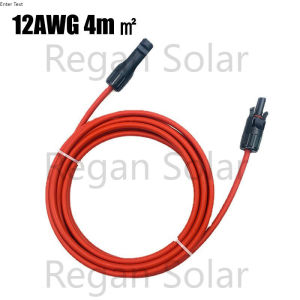

Solar Panel Extension Cable 10AWG/12AWG 4m㎡/6m㎡ 10/20/30 Feet Wire Double-head MC4 connector Extension Cords
FEATURE:Conductor: Stranded Tinned CopperInsulation: Halogen Free Crosslinked PolyolefinSheath: Halogen Free Crosslinked PolyolefinNominal Cross-Section:4.0m㎡Rated Temperature: -40~﹢90℃Rated Voltage DC: 1/1.8kVRated Voltage AC: 0.6kVRated Current: 33~57aWaterproof grade: ip67Weathering Resistance: Sun Res.Burning Behavior: (IEC60332-1)Black Cable M4 Connector: MaleRed Cable M4 Connector: FemaleTECHNOLOGY PARAMETERS 0f 10AWG(4mm2):Rated Temperature(℃) = -40~90Rated Votage(AC/DC（kV）) = 0.6~1.0/1.8Cable Core(NO.) = 1Cross-Section Area(mm2) = 4Cross-Section Area (AWG) = 12Diameter Of Wires/ Number(NO./mm) = 84/0.3Thickness Of The Insulation(mm) = ≥0.5Thickness Of The Sheath(mm) = ≥0.5Outer Dia.(mm) = 6.8-7.2Conductor Resistance（20℃）(Ω/km) = ≤3.39Voltage Test On Completed Cable(kV/min) = 6.5/5 No Breakdown
Regan Solar
