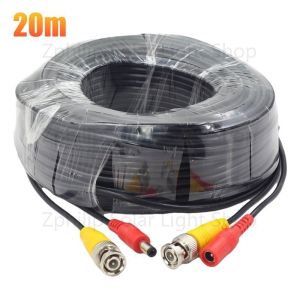

BNC Video and Power Siamese Cable For Surveillance CCTV Camera 10m /20m / 30m/40m/50m 4MM 1080P

Introduction to BNC Video & Power Siamese Cable

A BNC Video & Power Siamese Cable is a specialized cable designed specifically for surveillance CCTV cameras. This cable combines both video and power transmission capabilities, making it an ideal choice for setting up a robust security system. It comes in various lengths, including 10m, 20m, 30m, 40m, and 50m, and supports a resolution of 1080p, providing high-quality video footage.

Why Choose a BNC Video & Power Siamese Cable?

By opting for a BNC Video & Power Siamese Cable, you can enjoy several benefits. First and foremost, it simplifies the installation process by combining both video and power transmission into a single cable, eliminating the need for separate wiring. Additionally, this type of cable helps prevent ground looping, which can cause interference and reduce the overall quality of video footage.

Installation Guide for BNC Video & Power Siamese Cable

To install a BNC Video & Power Siamese Cable, follow these simple steps:

1. Plug the BNC connector end of the cable into your CCTV camera.
2. Connect the other end of the cable to your DVR machine, VCR, DVD recorder, TV, capture card, or multiplexer.
3. Insert the red cable into the power adapter and plug it into a socket behind your DVR.

Note that some cameras may require a BNC to phono adapter for proper connection.

Preventing Ground Looping

Ground looping occurs when two pieces of audio equipment are plugged into different power outlets, causing interference and reducing video quality. To prevent ground looping, run the power through the cable to the camera. This simple step will help maintain the integrity of your video footage.

Common Issues & Solutions

Understanding ground looping is crucial for maintaining the performance of your CCTV system. In CCTV systems, ground loops can manifest as hum bars, which appear as bands of slightly different brightness scrolling vertically up the screen. Low current wiring is particularly susceptible to ground loops, so taking preventive measures is essential.

Ground Looping in CCTV Systems

Ground looping can significantly affect the performance of your CCTV system. To minimize this issue, ensure that all equipment is properly grounded and connected to the same power source. Additionally, using a BNC Video & Power Siamese Cable can help prevent ground looping by running power through the cable to the camera.

Low Current Wiring Susceptibility to Ground Loops

Low current wiring is especially vulnerable to ground loops due to its sensitivity to electrical interference. To mitigate this risk, take the necessary precautions, such as using a BNC Video & Power Siamese Cable and ensuring proper grounding of all equipment.

In conclusion, a BNC Video & Power Siamese Cable is an excellent choice for setting up a surveillance CCTV system. It simplifies installation, prevents ground looping, and provides high-quality video footage. By understanding the potential issues and taking preventive measures, you can ensure the optimal performance of your security system.
