R230 Leroysomer Generator & AVR Automatic Regulator: A Comprehensive Guide

Understanding the R230 Leroysomer Generator

The R230 Leroysomer Generator is a highly efficient generator designed for industrial applications, specifically targeting the American market. This generator is capable of producing up to 100KW of power, making it suitable for various commercial and residential purposes.

Key Specifications

• Model Number: R230
• Sensing Input: 85 to 139 V
• Frequency: 50/60 Hz
• Output: max 75 V dc at 100V ac input; Continuous 4A dc; Intermittent 8A
• Resistance: 15 ohms mum

Customization Options

The R230 Leroysomer Generator offers customization options to meet the specific needs of its users. Users can adjust the generator's settings according to their desired output and frequency.

Origin & Sensing Input

Originating from Mainland China, this generator is built with high-quality components to ensure optimal performance. The sensing input range of 85 to 139 V allows for flexibility in power supply, making it suitable for various applications.

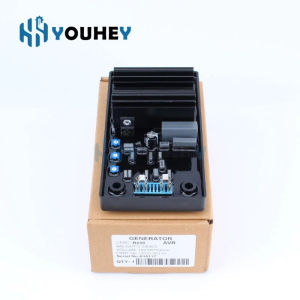

The AVR Automatic Regulator: A Closer Look

The AVR Automatic Regulator is an integral part of the R230 Leroysomer Generator, responsible for maintaining consistent voltage output.

Output & Frequency

The generator can produce a maximum output of 75V dc at 100V ac input, with continuous output of 4A dc and intermittent output of 8A. The frequency of the generator can be adjusted to either 50 Hz or 60 Hz, depending on the user's preference.

Potentiometer Adjustment

The P1 potentiometer (AVR adjustment) is used to fine-tune the generator's output. Users can turn the potentiometer slowly until the desired output value is achieved. The remote adjustment potentiometer allows for convenient adjustment from a distance.

Regulation & Response Time

The regulation of the generator is around +/-0.5%, ensuring stable voltage output. The rapid response time of 500 ms allows for quick adjustments in case of transient variations in amplitude of ± 20%.

Stabilizer Module & AC Control Panel

The stabilizer module and AC control panel are crucial components of the R230 Leroysomer Generator, ensuring optimal performance and safety.

Alternator Design

The alternator with shunt excitation has no sustaining short-circuit capacity, making it very simple in design. This design ensures that the generator operates efficiently without compromising safety.

Exciter Excitation Monitoring

The regulator monitors the exciter excitation as a function of the alternator output, ensuring that the generator maintains consistent voltage output.

Remote Adjustment Potentiometer

The remote adjustment potentiometer allows users to adjust the generator's settings from a distance, providing convenience and ease of use.

Genset Parts & Maintenance

To ensure optimal performance and longevity of the R230 Leroysomer Generator, regular maintenance and troubleshooting are essential.

Troubleshooting Tips

If the generator is not producing the desired output, users can check the potentiometer settings and adjust them accordingly. Users should also ensure that the generator is receiving adequate power supply within the sensing input range.

Recommended Spare Parts

Some recommended spare parts include:

• P1 potentiometer
• Remote adjustment potentiometer
• Alternator
• Regulator

Regular Maintenance Schedule

Regular maintenance is crucial to ensure optimal performance and longevity of the generator. Users should perform routine checks on the generator's components, including the alternator, regulator, and potentiometers. Users should also clean the generator regularly to prevent dust buildup, which can affect its performance.
