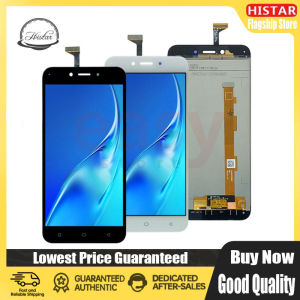

OPPO A71 LCD Touch Screen Display Frame Assembly: Replacement Guide

What is the OPPO A71 LCD Touch Screen Display Frame Assembly?

The OPPO A71 LCD Touch Screen Display Frame Assembly is a crucial component of the OPPO A71 smartphone, responsible for displaying visual content and enabling touch interactions. This assembly includes the LCD screen, touch panel, and frame, which work together to provide a seamless user experience.

Key Components

The OPPO A71 LCD Touch Screen Display Frame Assembly consists of the following key components:

• LCD Screen: The display component responsible for showing visual content.
• Touch Panel: A transparent layer placed over the LCD screen, enabling users to interact with the device through touch gestures.
• Frame: The outer casing that holds the LCD screen and touch panel in place.

Compatibility & Specifications

The OPPO A71 LCD Touch Screen Display Frame Assembly is specifically designed for the OPPO A71 smartphone model. It features a 6.5-inch display with a resolution of 720 x 1600 pixels and a 20:9 aspect ratio. This assembly is compatible with the OPPO A71 smartphone and may not work with other models.

How to Replace the OPPO A71 LCD Touch Screen Display Frame Assembly

Replacing the OPPO A71 LCD Touch Screen Display Frame Assembly requires some technical skills and specialized tools. Follow these steps to successfully replace the assembly:

Tools Required

• Screwdriver Set: A set of small screwdrivers to remove screws from the device.
• Pry Tool: A thin, flat tool to separate the device components.
• Spudger: A plastic tool to gently pry apart components.
• Suction Cup: A suction cup to lift the screen assembly.

Step-by-Step Process

1. Prepare the Device: Power off the OPPO A71 smartphone and remove the SIM card tray and battery.
2. Remove Screws: Remove the screws securing the back cover and rear camera module.
3. Separate Components: Use the pry tool and spudger to separate the display assembly from the motherboard and frame.
4. Disconnect Cables: Carefully disconnect the cables connecting the LCD screen and touch panel to the motherboard.
5. Install New Assembly: Install the new OPPO A71 LCD Touch Screen Display Frame Assembly, connecting the cables and securing the screws.
6. Reassemble Device: Reattach the back cover, rear camera module, and battery. Power on the device to test the new display assembly.

Troubleshooting Common Issues

During the replacement process, you may encounter some common issues such as misaligned components or disconnected cables. To resolve these issues, double-check that all screws are properly secured, cables are connected correctly, and components are aligned before reassembling the device.

Where to Purchase OPPO A71 LCD Screen Repair Parts

You can purchase OPPO A71 LCD screen repair parts from trusted online retailers and local repair shops and service centers. Some popular options include Amazon, eBay, and iFixit, as well as local repair shops specializing in OPPO devices.

Conclusion & Final Thoughts

Replacing the OPPO A71 LCD Touch Screen Display Frame Assembly requires some technical skills and specialized tools, but it can be done with careful attention to detail and proper technique. By following this guide, you can successfully replace the assembly and restore your OPPO A71 smartphone to its original condition.

Remember to purchase high-quality repair parts from trusted sources to ensure the best results. If you're unsure about any part of the process, consider seeking professional assistance from a qualified repair technician.
