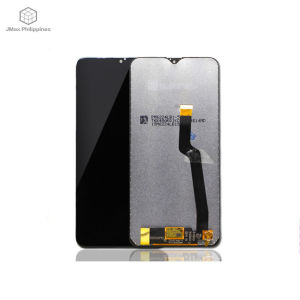

Samsung LCD Galaxy A10 A10S A20S A105 A107 A207 LCD Display Touch Screen Assembly for Replacement

Background Context

Samsung Galaxy A Series Overview

The Samsung Galaxy A series is a popular range of smartphones known for their affordability and reliable performance. Among the various models, the A10, A10S, A20S, A105, A107, and A207 have gained significant popularity among users. As these devices age, the LCD screen and touch screen assembly might require replacement due to wear and tear or accidental damage.

LCD Display & Touch Screen Assembly Basics

An LCD display and touch screen assembly consists of several components, including the LCD panel, touch screen layer, backlight, and frame. When replacing this assembly, it is crucial to understand the components' functions and how they interact to ensure a successful installation.

Preparing for Installation

Necessary Tools & Materials

To install a replacement LCD display and touch screen assembly, you will need the following tools and materials:

• Replacement LCD screen (compatible with your device)
• Precision screwdrivers
• Plastic opening tools
• Adhesive strips or glue (if required)
• Isopropyl alcohol and lint-free cloth
• Anti-static wrist strap

Safety Precautions

Before starting the installation process, make sure to:

• Power off your device and remove the battery (if possible).
• Wear an anti-static wrist strap to prevent damage to sensitive components.
• Work on a clean, flat surface with adequate lighting.
• Follow the manufacturer's instructions and guidelines for your specific model.

Testing the Screen Before Installation

After receiving the replacement screen, test it to ensure it functions correctly. If any issues are detected, contact the seller immediately for a resolution. Only proceed with installation if the screen passes the test.

Installation Process

Removing Old Screen Assembly

To replace the old screen assembly, carefully remove the existing screen by:

1. Detaching the adhesive strips or glue securing the screen to the frame.
2. Disconnecting the flex cable connecting the screen to the motherboard.
3. Removing any screws or clips holding the screen in place.

Installing New LCD Display & Touch Screen Assembly

To install the new LCD display and touch screen assembly, follow these steps:

1. Align the new screen with the frame and secure it using adhesive strips or glue (if required).
2. Connect the flex cable to the motherboard.
3. Reattach any screws or clips removed during the old screen removal process.

Final Steps & Quality Assurance

After installing the new screen, perform the following final steps:

• Test the screen to ensure proper functionality.
• Check for any loose connections or improperly installed components.
• Reassemble the device and power it on to verify the new screen works correctly.

Post-Installation Considerations

Warranty & Support

If you are not a certified technician, we recommend bringing the device to a repair shop for installation. Self-installed screens will not be covered under warranty. For any issues related to the replacement screen, contact the seller for support.

Troubleshooting Common Issues

If you encounter problems after installing the new screen, try the following troubleshooting steps:

• Ensure the flex cable is securely connected to the motherboard.
• Verify that all screws and clips are properly reattached.
• Test the screen again to confirm proper functionality.

Remember, if you are not confident in your ability to install the screen, seek assistance from a professional repair shop.
