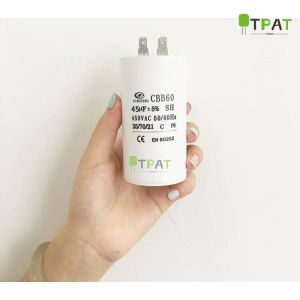

CBB60 Water Pump Motor Capacitor 5uf~100uf 450v

Introduction to CBB60 Capacitors

CBB60 capacitors are widely used in electrical motors, particularly water pump motors, due to their excellent self-healing properties and high stability. These capacitors have a tolerance of ±5%, rated voltage of 450VAC, and come in various models ranging from 5uf to 100uf. With an operating temperature range of -25°C to 75°C, they offer reliable performance in diverse environments. The CBB60 series has a low loss factor (Tan δ ≤ 0.002 at 100Hz and 20°C) and a low equivalent series resistance (ESR) of 3000 mΩ, ensuring efficient energy transfer and minimal power loss.

Key Specifications & Features

The CBB60 water pump motor capacitor series features:

• ±5% tolerance
• 450VAC rated voltage
• 5uf~100uf capacitance range
• Good self-healing properties
• High stability
• Operating temperature range: -25°C to 75°C
• Low loss factor (Tan δ ≤ 0.002 at 100Hz and 20°C)
• Low equivalent series resistance (ESR) of 3000 mΩ

The CBB60 capacitors come in various sizes depending on their capacitance value:

• 5UF/6UF: 30x60mm
• 7UF/8UF/9UF/10UF: 35x60mm
• 12UF: 35x70mm
• 14/16/18/20UF: 40x70mm
• 25UF/30UF: 45x70mm
• 35UF/40UF: 45x93mm
• 45UF/50UF/55UF: 50x92mm
• 60UF: 50x100mm
• 70UF: 50x120mm
• 80UF/90UF/100UF: 55x120mm

Applications & Benefits

CBB60 capacitors are ideal for use in motor running applications, particularly in water pump motors. Their self-healing properties ensure that any internal faults are quickly repaired, maintaining optimal performance. The high stability of these capacitors ensures consistent operation, even under varying load conditions. Additionally, their low loss factor and equivalent series resistance contribute to efficient energy transfer and minimal power loss.

Choosing the Right CBB60 Capacitor

When selecting a CBB60 capacitor for your water pump motor, consider the following factors:

• Capacitor size: Ensure the selected capacitor fits within the available space in your motor.
• Voltage rating: Verify that the capacitor's rated voltage matches the motor's operating voltage.
• Capacitance value: Choose a capacitor with a capacitance value that meets the motor's requirements.

To evaluate capacitor performance, consider the following aspects:

• Self-healing properties: Look for capacitors with good self-healing capabilities to minimize downtime and prolong lifespan.
• Stability: Select capacitors with high stability to ensure consistent operation under varying load conditions.
• Loss factor: Opt for capacitors with low loss factors to maximize energy transfer and minimize power loss.

Installation & Maintenance

To install a CBB60 capacitor in your water pump motor, follow these steps:

1. Turn off the power supply to the motor.
2. Remove the old capacitor, if applicable.
3. Connect the new capacitor according to the manufacturer's instructions.
4. Turn on the power supply and test the motor's operation.

Regular maintenance is essential to ensure optimal performance and prolong the lifespan of your CBB60 capacitor. Follow these tips:

• Inspect the capacitor periodically for any signs of damage or wear.
• Clean the capacitor and surrounding components to prevent dust buildup.
• Replace the capacitor if it shows signs of failure or if its performance deteriorates.

Troubleshooting Common Issues

If you encounter issues with your CBB60 capacitor, follow these steps to identify and resolve the problem:

• Identify the problem: Determine whether the issue is related to the capacitor's performance, such as increased power loss or reduced stability.
• Troubleshoot the issue: Check for loose connections, damaged components, or incorrect installation.
• Resolve capacitor failures: Replace the faulty capacitor with a new one, following the installation instructions.

FAQs & Contact Information

Frequently Asked Questions

Q: Can I use a CBB60 capacitor in other types of motors besides water pump motors? A: Yes, CBB60 capacitors can be used in various motor applications, including fans, compressors, and pumps.

Q: What should I do if my CBB60 capacitor fails? A: Replace the faulty capacitor with a new one, following the installation instructions.

Q: How often should I inspect my CBB60 capacitor? A: Inspect the capacitor periodically, at least once every six months, or as recommended by the manufacturer.

Contact Us for More Information

If you have any questions about CBB60 capacitors or need further assistance, please contact us at [your email address] or visit our website at [your website URL]. Our team of capacitor engineers is here to help you find the right solution for your application.
