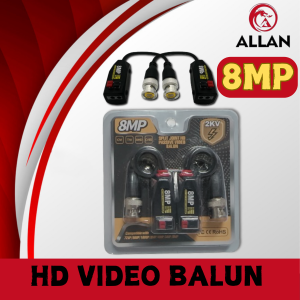

Allan 8MP HD Video Balun For CCTV

What is an Allan 8MP HD Video Balun?

An Allan 8MP HD Video Balun is a specialized device used in high-definition surveillance systems, particularly in CCTV setups. It enables the transmission of video signals over twisted-pair cables, which are commonly used in various security applications. The balun supports multiple video formats, including HD-CVI, AHD, TVI, and CVBS, making it a versatile solution for a wide range of applications.

Wide Range of Applications

The Allan 8MP HD Video Balun is designed to support various video formats, including HD-CVI, AHD, TVI, and CVBS. This makes it suitable for a wide range of applications, such as retail stores, warehouses, office buildings, and residential areas. Its ability to transmit high-definition video signals ensures clear and crisp images, even in low-light conditions.

Easy Installation

One of the key advantages of the Allan 8MP HD Video Balun is its ease of installation. It features a gold-plated copper core BNC header, which allows for simple press wiring connections. This eliminates the need for soldering or crimping, making it a convenient solution for both professional installers and DIY enthusiasts.

Key Characteristics

The Allan 8MP HD Video Balun boasts several key characteristics that make it stand out in the market. These include:

• Built-in Lightning Protection: The balun comes equipped with built-in TVS lightning protection tubes, providing three-level lightning protection. This ensures the safety of your surveillance system during thunderstorms and other electrical disturbances.
• Support for Multiple Baluns: The balun is designed to support multiple units, allowing you to expand your surveillance system as needed.
• High-Quality Components: The balun features a high-Q value coil, which increases the pass-through transmission of complex frequency signals, including 720P, 960P, 1080P, 3MP, 4MP, 5MP, and 8MP resolutions.
• Compact and Durable: The balun is compact and convenient, making it easy to install and integrate into existing CCTV systems. Its anti-aging wire and low impedance ensure a long service life.

Why Choose Allan 8MP HD Video Balun?

There are several reasons why you should consider choosing the Allan 8MP HD Video Balun for your CCTV setup:

Superior Signal Transmission

The Allan 8MP HD Video Balun provides superior signal transmission, ensuring clear and crisp images even at high resolutions. Its high-Q value coil increases the pass-through transmission of complex frequency signals, making it ideal for high-definition surveillance systems.

Built-in Lightning Protection

The balun comes equipped with built-in TVS lightning protection tubes, providing three-level lightning protection. This ensures the safety of your surveillance system during thunderstorms and other electrical disturbances.

Long Service Life

The Allan 8MP HD Video Balun is designed to last, with its anti-aging wire and low impedance ensuring a long service life. This makes it a cost-effective solution for businesses and homeowners who want to invest in a reliable and durable surveillance system.

How to Install Allan 8MP HD Video Balun?

Installing the Allan 8MP HD Video Balun is a straightforward process that can be completed in just a few simple steps:

Preparing for Installation

Before installing the balun, ensure that you have all the necessary tools and equipment, including a screwdriver, cable tester, and BNC connectors. Additionally, make sure that the balun is compatible with your existing CCTV system.

Installing the Balun

To install the balun, follow these steps:

1. Connect the balun to the twisted-pair cable using the gold-plated copper core BNC header.
2. Secure the balun to the wall or ceiling using screws or adhesive tape.
3. Connect the balun to the DVR using the appropriate BNC connectors.

Testing the Connection

Once the balun is installed, test the connection by powering on the DVR and checking for any errors or issues. If everything is working correctly, you should see clear and crisp images on your monitor.

Conclusion

The Allan 8MP HD Video Balun is a versatile and reliable solution for high-definition surveillance systems. Its wide range of applications, easy installation, and superior signal transmission make it an excellent choice for businesses and homeowners who want to invest in a durable and cost-effective security system. With built-in lightning protection and a long service life, the Allan 8MP HD Video Balun is a must-have accessory for any CCTV setup.
