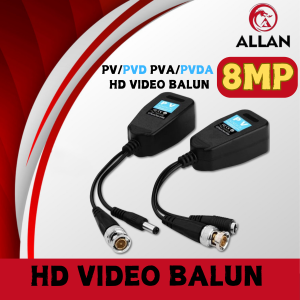

ALLAN 8MP HD Video Balun RJ45 to BNC Transceiver for HD-CVI/TVI/AHD/CVBS Surveillance Camera System

Understanding ALLAN 8MP HD Video Balun

The ALLAN 8MP HD Video Balun RJ45 to BNC Transceiver is a versatile device that enables high-definition video transmission through UTP CAT5 cables. This passive power and video balun is compatible with various surveillance camera systems, including HD-CVI/TVI/AHD/CVBS. It is designed to support up to 8MP resolution, making it ideal for high-quality video surveillance applications.

Key Features

• Compatibility: The ALLAN 8MP HD Video Balun supports HD-CVI/TVI/AHD/CVBS video devices, making it suitable for 720P/960P/1080P Max. 2MP CCTV cameras, monitors, DVR cards, and recorders.
• Transmission Quality: Gold-plated BNC connectors provide better transmission quality and long-distance HD transmission.
• Easy Installation: With the use of Ethernet cables, installation is straightforward and cost-effective, saving up to 50% in cabling expenses.
• LED Indicators: Green light indicates proper functioning, while yellow light signifies issues.
• Strong Compatibility: The device supports all video devices, such as cameras, monitors, DVR cards, and recorders.

Benefits

• Cost-effective: With its ability to save up to 50% in cabling costs, the ALLAN 8MP HD Video Balun is an economical choice for businesses and homeowners alike.
• High-Quality Transmission: Gold-plated BNC connectors ensure better transmission quality and long-distance HD transmission.
• Ease of Installation: The device's simple design makes it easy to install, even for those with limited technical knowledge.
• Compatibility: With support for various surveillance camera systems, the ALLAN 8MP HD Video Balun is versatile and adaptable to different needs.

Installation & Setup

To ensure proper installation and setup of the ALLAN 8MP HD Video Balun, follow these steps:

Tools Needed

• Ethernet cable
• Screwdriver
• RJ45 to BNC adapter

Step-by-Step Guide

1. Connect the BNC connector to the camera or monitor using the provided Ethernet cable.
2. Insert the RJ45 connector into the appropriate port on the DVR card or recorder.
3. Tighten the screws on the BNC connector to secure the connection.
4. Power on the system and check the LED indicators for proper functioning.

Troubleshooting Tips

• If the LED indicator shows a yellow light, check the connections and ensure they are secure.
• Verify that the camera, monitor, DVR card, and recorder are compatible with the ALLAN 8MP HD Video Balun.
• If issues persist, consult the user manual or contact customer support for further assistance.

Enhancing Your Surveillance System

To maximize the performance and effectiveness of your surveillance system, consider the following tips:

Maximizing Performance

• Regularly update firmware and software to ensure optimal performance.
• Clean camera lenses and monitor screens to maintain clear video quality.
• Regularly check connections and cables for any signs of wear or damage.

Integrating with Other Devices

• Connect multiple cameras to the same system for comprehensive coverage.
• Integrate with other security devices, such as alarms and access control systems, for enhanced protection.
• Utilize cloud-based storage solutions for remote access and backup.

Maintaining Your System

• Schedule regular maintenance checks to identify and address potential issues.
• Keep records of system performance and troubleshooting history for future reference.
• Replace faulty components promptly to prevent downtime and ensure continuous operation.

Conclusion

The ALLAN 8MP HD Video Balun RJ45 to BNC Transceiver is a valuable addition to any surveillance camera system. Its compatibility with various video devices, ease of installation, and cost-effectiveness make it an excellent choice for businesses and homeowners alike. By following the installation and setup instructions, maximizing performance, integrating with other devices, and maintaining your system, you can ensure a reliable and effective surveillance solution.

Final Thoughts

Investing in the ALLAN 8MP HD Video Balun is a smart decision for anyone looking to enhance their surveillance capabilities. With its high-quality transmission, ease of installation, and strong compatibility, this device offers a versatile and efficient solution for monitoring and securing your property.
