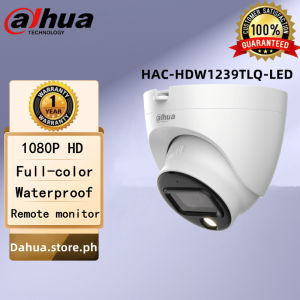

Dahua CCTV Camera: HAC-HDW1239TL-A-LED 2MP/5MP Full-color With Audio IR20m Eyeball Indoor/Outdoor Waterproof Analog Camera

Introduction

The Dahua CCTV Camera (HAC-HDW1239TL-A-LED) is a powerful analog camera that delivers exceptional image quality and reliability. With its 2MP/5MP Full-color resolution, IR illumination, and waterproof design, this camera is suitable for both indoor and outdoor applications. In this article, we will explore the key features, installation process, usage tips, and troubleshooting methods to help you make the most out of your Dahua CCTV Camera.

Key Features

• Analog Camera with Audio: This camera captures high-quality video in analog format and supports audio recording, allowing you to hear what's happening in the monitored area.
• Eyeball Camera with IR: The camera features an eyeball design that can be easily adjusted to capture wide-angle views. It also comes with IR illumination, providing clear images even in low-light conditions.
• Indoor/Outdoor Waterproof Camera: The camera is designed to withstand harsh weather conditions, making it ideal for both indoor and outdoor use.
• 2MP/5MP Full-color Camera: With its 2MP/5MP resolution, this camera delivers crisp and clear images, even in low-light environments.

Product Specifications

• Model: HAC-HDW1239TL-A-LED
• Resolution: 2MP/5MP
• Image Sensor: CMOS
• Field of View: 100°
• IR Range: 20m
• IP Rating: IP67
• Weight: 200g
• Dimensions: 75 x 75 x 115mm

Installation & Setup

Step-by-step Guide

1. Unpack the camera and accessories, including the camera, 4 screws, 4 Tux, and the manual.
2. Mount the camera on a suitable location using the provided screws and Tux.
3. Connect the power supply and video cable to the camera.
4. Connect the video cable to your monitor or DVR.
5. Adjust the camera angle and focus according to your preference.
6. Power on the camera and start monitoring.

Placement & Mounting

• Indoor Placement: Choose a location with minimal obstructions and good lighting conditions. Avoid placing the camera near sources of heat or moisture.
• Outdoor Placement: Ensure the camera is mounted securely and protected from harsh weather conditions. Consider using a protective cover if necessary.

Usage & Maintenance

Camera Operation

• Power On/Off: Press the power button on the camera to turn it on or off.
• Adjust Camera Angle: Use the camera's eyeball design to adjust the angle and capture the desired view.
• Focus Adjustment: Adjust the focus ring to sharpen the image quality.

Cleaning & Care

• Cleaning: Use a soft, dry cloth to clean the camera lens and housing. Avoid using harsh chemicals or abrasive materials.
• Storage: Store the camera in a cool, dry place when not in use.
• Maintenance: Regularly check the camera's connections and firmware updates to ensure optimal performance.

Troubleshooting & Support

Common Issues

• No Video Output: Check the power supply and video cable connections. Ensure the camera is properly powered on and connected to the monitor or DVR.
• Poor Image Quality: Adjust the focus ring and camera angle to improve image clarity. Ensure the camera is placed in a well-lit area.
• Audio Issues: Check the audio cable connections and settings. Ensure the camera is properly powered on and connected to the monitor or DVR.

Contacting Customer Support

If you encounter any issues with your Dahua CCTV Camera, contact the customer support team for assistance. They can provide guidance on troubleshooting common problems and offer solutions to ensure optimal performance.
