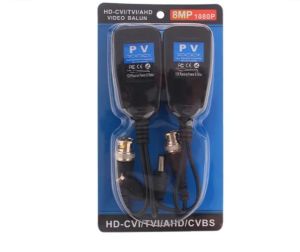

8MP HD-CVI/TVI/AHD/CVBS Passive Video Balun with Power Connector and RJ45 UTP CAT5/CAT5e/CAT6

Understanding the Technology

What is an 8MP HD-CVI Passive Video Balun?

An 8MP HD-CVI Passive Video Balun is a device designed to transmit high-definition video signals over long distances using standard twisted pair cables like CAT5/CAT5e/CAT6. HD-CVI stands for High Definition Composite Video Interface, which is a video transmission standard that offers superior image quality compared to traditional analog formats.

What is TVI/AHD/CVBS Video Balun?

TVI (True Video Interface), AHD (Analog High Definition), and CVBS (Composite Video Blanking and Sync) are alternative video transmission standards used in security camera systems. A TVI/AHD/CVBS Video Balun allows seamless integration and transmission of video signals from cameras using these formats over twisted pair cables.

What is RJ45 UTP CAT5/CAT5e/CAT6?

RJ45 is a type of connector commonly used in networking applications, including security camera systems. UTP stands for Unshielded Twisted Pair, which refers to the cabling used in these systems. CAT5, CAT5e, and CAT6 are different categories of UTP cabling, with CAT6 being the most advanced and capable of supporting higher bandwidths and faster data transfer rates.

Key Features & Benefits

High-Definition Video Transmission

One of the primary benefits of using an 8MP HD-CVI Passive Video Balun is its ability to transmit high-definition video signals over long distances with minimal loss of quality. This feature is crucial for security camera systems that require clear and sharp images for monitoring and surveillance purposes.

Passive Video Balun with Power Connector

The passive nature of this video balun means it does not require external power to function, making it a cost-effective solution for security camera installations. Additionally, the built-in power connector allows for easy integration with PoE (Power over Ethernet) devices, simplifying the installation process.

Compatibility with Different Video Formats

The versatility of the 8MP HD-CVI Passive Video Balun lies in its compatibility with various video formats, including HD-CVI, TVI, AHD, and CVBS. This compatibility ensures seamless integration with different camera systems and allows users to choose the most suitable video transmission standard for their specific needs.

Installation & Usage

How to Install the 8MP HD-CVI Passive Video Balun

To install the 8MP HD-CVI Passive Video Balun, follow these steps:

1. Connect the balun to the camera using a coaxial cable.
2. Connect the other end of the balun to the twisted pair cable (CAT5/CAT5e/CAT6).
3. Ensure proper grounding and shielding to minimize interference and signal degradation.

How to Connect TVI/AHD/CVBS Video Balun

Connecting a TVI/AHD/CVBS Video Balun is similar to the process described above. However, users must ensure that the balun is compatible with the specific video transmission standard used by their camera system.

How to Use RJ45 UTP CAT5/CAT5e/CAT6

To use RJ45 UTP CAT5/CAT5e/CAT6 cabling with the video balun, simply connect the twisted pair cable to the appropriate ports on both the balun and the camera system. For best results, use CAT6 cables to take advantage of their higher bandwidth capabilities.

By following these guidelines, users can successfully install and utilize the 8MP HD-CVI/TVI/AHD/CVBS Passive Video Balun with Power Connector and RJ45 UTP CAT5/CAT5e/CAT6 to enhance their security camera systems and achieve high-definition video transmission over long distances.
