Introduction to CHUANGCHAO Winch Pulley
The CHUANGCHAO winch pulley is a high-quality manual winch designed for heavy-duty applications. This product features a robust construction and reliable performance, making it suitable for various industrial and commercial purposes.
Overview of Heavy Duty Hand Crank Winch
Our CHUANGCHAO winch pulley is available in two models: 1200lb and 2600lb. Both models come equipped with an automatic brake ratchet switch and a hook for easy installation and operation. These winches are perfect for applications that require horizontal traction or hanging up and down.
Key Features & Benefits
- Heavy-duty construction for reliable performance
- Automatic brake ratchet switch for easy operation
- Available in two models: 1200lb and 2600lb
- Suitable for horizontal traction and hanging up and down applications
- Durable wire rope for long-lasting use
Specifications & Technical Details
The CHUANGCHAO winch pulley comes in two models: 1200lb and 2600lb. Below are the specifications for each model:
Model Number 1200lb
- Horizontal traction: <500kg
- Hanging up and down: <150kg
- Speed ratio: 4:1
- Wire rope diameter: 4mm
- Wire rope length: 5-30m
- Hook: 0.5t hook
- Turntable outer diameter: 134mm
- Turntable inner diameter: 48mm
- Weight: 3.8kg

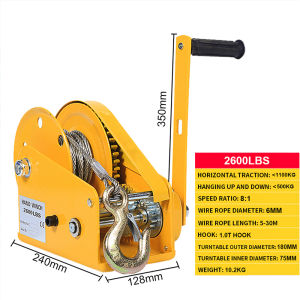

Model Number 2600lb
- Horizontal traction: <1100kg
- Hanging up and down: <500kg
- Speed ratio: 8:1
- Wire rope diameter: 6mm
- Wire rope length: 5-30m
- Hook: 1.0t hook
- Turntable outer diameter: 180mm
- Turntable inner diameter: 75mm
- Weight: 10.3kg
How to Choose the Right Winch Pulley
When selecting a winch pulley, consider the following factors:
Considerations for Horizontal Traction
- Determine the weight of the load you will be moving horizontally.
- Choose a winch pulley with a horizontal traction capacity greater than the weight of the load.
Considerations for Hanging Up & Down
- Determine the weight of the load you will be lifting or lowering.
- Choose a winch pulley with a hanging up and down capacity greater than the weight of the load.
Installation & Usage Guide
To ensure proper installation and operation of your CHUANGCHAO winch pulley, follow these steps:
Setting Up Your Manual Winch
- Install the winch pulley on a secure mount.
- Attach the wire rope to the hook.
- Adjust the tension of the wire rope as needed.
Operating the Automatic Brake Ratchet Switch
- Turn the handle to wind or unwind the wire rope.
- Engage the automatic brake ratchet switch to secure the wire rope in place.
Frequently Asked Questions
What is the wire rope length?
The wire rope length for both models is 5-30m.
What is the weight of the winch?
The weight of the 1200lb model is 3.8kg, while the weight of the 2600lb model is 10.3kg.
CHUANGCHAO winch pulleys are available at special offer prices. Don't miss out on this opportunity to purchase a high-quality manual winch with automatic brake ratchet switch and hook.
