2023 Best Solar Circuit Breaker: 1000V DC Breaker & Single Pole Circuit Breaker

Introduction to 1000V DC Breaker

Solar power systems have become increasingly popular as a clean and renewable energy source. As solar installations grow larger and more complex, it's crucial to ensure the safety and reliability of these systems. One essential component in solar power installations is the 1000V DC breaker, a specialized circuit breaker designed to handle high-voltage direct current (DC) in solar panels and other renewable energy applications.

Key Features of the 1000V DC Breaker

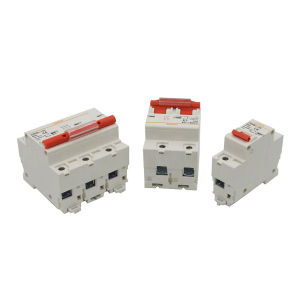

The Ferunete CENB1-125 solar DC breaker offers several key features that make it a top choice for solar power installations:

• High Voltage Rating: Capable of handling up to 1000V DC, making it suitable for large-scale solar installations.
• Multiple Amperage Ratings: Available in 63A, 80A, 100A, and 125A ratings to accommodate various system sizes.
• Multi-Pole Configurations: Available in 1P, 2P, 3P, and 4P configurations to suit different installation requirements.
• IEC60898 & GB10963 Compliance: Meets international safety standards for reliable performance.
• Long Mechanical Life Expectancy: Over 20,000 cycles, ensuring years of trouble-free operation.

Benefits of Using a 1000V Solar Breaker

Using a 1000V solar breaker in your solar power system offers numerous benefits, including:

• Enhanced Safety: Provides protection against electrical faults, reducing the risk of fire and equipment damage.
• Improved Reliability: Ensures consistent performance even under harsh environmental conditions.
• Increased Efficiency: Minimizes energy losses due to voltage drops and improves overall system efficiency.
• Cost Savings: Reduces maintenance costs by minimizing the need for repairs and replacements.

Understanding Solar DC Circuit Breakers

Solar DC circuit breakers play a vital role in protecting solar power systems from electrical faults and ensuring safe operation. There are two main types of solar DC circuit breakers: single pole and multi-pole breakers.

Single Pole vs Multi-Pole Breakers

Single pole breakers, also known as 1P breakers, protect individual circuits in a solar power system. They are suitable for smaller installations or applications where only one circuit requires protection.

Multi-pole breakers, including 2P, 3P, and 4P configurations, protect multiple circuits simultaneously. They are ideal for larger solar installations or applications where multiple circuits require protection.

63A, 80A, 100A, & 125A Breaker Ratings Explained

The amperage rating of a solar DC breaker determines the maximum current it can safely handle. The Ferunete CENB1-125 solar DC breaker is available in four different ratings:

• 63A: Suitable for small residential solar installations or applications with lower power requirements.
• 80A: Ideal for medium-sized residential or commercial solar installations.
• 100A: Best suited for large residential or commercial solar installations with higher power demands.
• 125A: Designed for industrial solar installations or applications requiring extremely high power levels.

Installation & Usage of Solar DC Circuit Breakers

Proper installation and maintenance of solar DC circuit breakers are crucial for ensuring safe and efficient operation of solar power systems.

How to Install a Solar DC Circuit Breaker

Follow these steps to install a solar DC circuit breaker:

1. Turn off the power supply to the solar power system.
2. Identify the appropriate location for the circuit breaker within the system.
3. Connect the circuit breaker to the appropriate terminals, ensuring proper polarity.
4. Secure the circuit breaker in place using the provided mounting hardware.
5. Turn on the power supply and test the circuit breaker to ensure proper operation.

Tips for Proper Maintenance & Troubleshooting

To maintain optimal performance and prolong the lifespan of your solar DC circuit breaker, follow these tips:

• Regularly inspect the circuit breaker for signs of damage or wear.
• Clean the circuit breaker and surrounding components using a soft, dry cloth.
• Check the connections for tightness and proper polarity.
• Monitor the circuit breaker's performance and address any issues promptly.

Ferunete CENB1-125 Solar DC Breaker Specifications

The Ferunete CENB1-125 solar DC breaker is a versatile and reliable choice for solar power installations. Here are some key specifications:

• Model Number: CENB1-125
• Pole Configuration: 1P/2P/3P/4P
• Mechanical Life Expectancy: More than 20,000 cycles
• Breaking Capacity: 4,000A
• Instantaneous Tripping Type: B
• Weight: 0.16kg/0.32KG/0.48KG/0.64KG
• Certification: Conform to IEC60898 GB10963
• Place of Origin: Wenzhou, China

Conclusion: Choosing the Right Solar Circuit Breaker

Selecting the right solar circuit breaker is essential for ensuring the safety and reliability of your solar power system. The Ferunete CENB1-125 solar DC breaker offers a robust and reliable solution for a wide range of solar power applications. With its high voltage rating, multiple amperage ratings, and multi-pole configurations, this breaker is well-suited for both residential and commercial solar installations. By following proper installation and maintenance procedures, you can enjoy years of trouble-free operation and peace of mind knowing your solar power system is protected.
