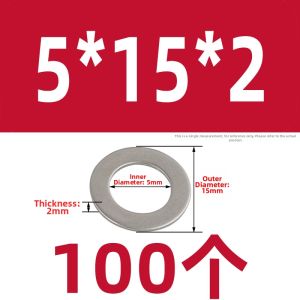

304 Stainless Steel Flat Washer Metal JIS Standard Large Size Washer M1.6-M30 Flat Washers for Hardware And Tools

  Unit: mm specification Description: for example, M5 * 10*1 refers to Yes (inner diameter d * outer diameter dc * thickness h)


   specifications D
  D
  DC
  H


   max
   min
   max
   min


  M3
 3.40
 3.2
 9
 8.64
 0.8


  M4
 4.50
 4.3
 12
 11.57
 1


  M5
 5.48
 5.3
 15
 14.57
 1.2


  M6
 6.62
 6.4
 18
 17.57
 1.6


  M8
 8.62
 8.4
 24
 23.48
 2


  M10
 10.80
 10.5
 30
 29.48
 2.5


  M12
 13.30
 13.0
 37
 36.35
 3


  M14
 15.30
 15.0
 44
 49.35
 3


  M16
 17.30
 17.0
 50
 49.35
 3


  M20
 22.55
 22.0
 60
 58.1
 4


  M24
 26.85
 26.0
 72
 70.1
 5


  M30
 34
 33.0
 92
 89.8
 6


  M36
 40
 29.0
 110
 107.8
 8


  the above data is measured manually in a single batch, and there is some error. Please refer to the actual product! Bid carefully if you have concerns.
