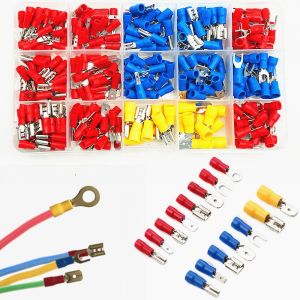

280pcs Assorted Insulated Cable Connector Electrical Wire Crimping Butting Auto Parts Kit Combination Box Insulation Terminal Wire Connector Whit Wire Cable Heat Shrink Tube Crimp Terminal

Introduction to the 280pcs Insulated Cable Connector Kit

Welcome to our comprehensive guide on the 280pcs Insulated Cable Connector Kit! This kit is designed for professional use and comes with everything you need to connect wires efficiently and safely. In this article, we will cover the key features, benefits, and how to assemble and install the insulated cable connector kit.

Key Features of the Insulated Cable Connector Kit

The 280pcs Insulated Cable Connector Kit comes with a wide range of features that make it a top choice for professionals. Some of the key features include:

• Assorted crimp terminals for different wire gauges
• Heat shrink tube connectors for added insulation and protection
• High-quality insulation materials for reliable connections

Benefits of Using Auto Parts Crimp Terminal

Using auto parts crimp terminals has numerous benefits, including:

• Improved electrical conductivity
• Enhanced safety due to secure connections
• Increased durability and longevity of wire connections

Understanding Heat Shrink Tube Connectors

Heat shrink tube connectors are an essential component of the insulated cable connector kit. They provide additional insulation and protection for wire connections, helping to prevent corrosion and other issues.

How to Use Heat Shrink Tube Connectors

To use heat shrink tube connectors, follow these steps:

1. Slide the heat shrink tube over one end of the wire.
2. Strip the insulation from the wire, exposing the bare conductor.
3. Insert the exposed wire into the crimp terminal.
4. Crimp the terminal using a crimping tool.
5. Slide the heat shrink tube over the crimped terminal.
6. Apply heat using a heat gun or lighter to shrink the tube and secure the connection.

Applications of Heat Shrink Tube Connectors

Heat shrink tube connectors have a wide range of applications, including:

• Automotive wiring
• Marine electrical systems
• Industrial machinery and equipment

How to Assemble and Install the Insulated Cable Connector Kit

Assembling and installing the insulated cable connector kit is a straightforward process. Follow these steps to ensure a successful installation:

Step-by-Step Assembly Guide

1. Sort the crimp terminals by size and gauge.
2. Select the appropriate crimp terminal for the wire gauge you are working with.
3. Strip the insulation from the wire, exposing the bare conductor.
4. Insert the exposed wire into the crimp terminal.
5. Crimp the terminal using a crimping tool.
6. Slide the heat shrink tube over the crimped terminal.
7. Apply heat using a heat gun or lighter to shrink the tube and secure the connection.

Tips for Successful Installation

• Always use the correct crimp terminal for the wire gauge.
• Make sure the wire is properly stripped before inserting it into the crimp terminal.
• Use a crimping tool to ensure a secure connection.
• Apply heat evenly to shrink the heat shrink tube.

Troubleshooting Common Issues

Even with proper installation, issues may arise with insulated cable connectors. Here are some common problems and solutions:

Identifying Problems with Insulated Cable Connectors

• Loose connections
• Corrosion or rust
• Overheating

Solutions for Common Issues

• Check the crimp terminal for a secure connection.
• Replace any corroded or rusted terminals.
• Ensure proper insulation and protection using heat shrink tube connectors.

Conclusion: Maximizing the Potential of Your Insulated Cable Connector Kit

The 280pcs Insulated Cable Connector Kit is a versatile and reliable solution for connecting wires efficiently and safely. By understanding the key features, benefits, and how to assemble and install the kit, you can maximize its potential and ensure a successful installation every time.
