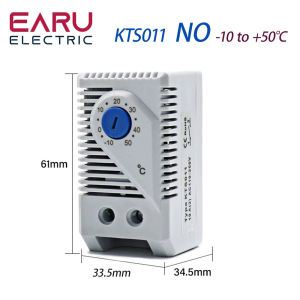

DIN Rail Cabinet Temperature Controller: KTO011 & KTS011

Overview of the KTO011 & KTS011

The KTO011 and KTS011 are industrial thermostats designed specifically for DIN rail cabinet temperature control. These mechanical thermoregulators provide reliable temperature regulation within the range of 0 to 60 degrees Celsius, making them ideal for various industrial applications.

Key Features

• Model Numbers: KTO011, KTS011, ZR011
• Max Measuring Temperature: 50°C - 69°C
• Display Type: Analog
• Power Type: None
• Display Size: Under 1.9 inches
• Style: Standing Station
• Brand Name: EARUELETRIC
• Origin: Mainland China
• Certification: CE, RoHS
• Contact Type: Snap-action contact
• Contact Resistance: Less than 10mΩ
• Installation: 35mm DIN
• Storage Temperature: -45℃ to 80℃
• Shell Material: Plastic UL94
• Switch Temperature Difference: 7K (±4K)
• Control Temperature Range 1: 0-60°C
• Control Temperature Range 2: -10-50°C
• Control Output Type 1: Red color Normal Closed
• Control Output Type 2: Blue color Normal Open
• Control Output Type 3: Normal Closed and Normal Open

Applications & Benefits

The KTO011 and KTS011 industrial thermostats offer numerous benefits for various industries, including:

• Reliable Temperature Control: Ensures consistent temperature regulation within the specified range.
• Compact Design: Fits easily onto DIN rails, saving valuable space in cabinets.
• Wide Operating Range: Capable of handling temperatures from -10 to 60 degrees Celsius.
• Certified Quality: Complies with CE and RoHS standards for safety and environmental protection.

Installation & Setup

Preparing the DIN Rail

Before installing the KTO011 or KTS011, ensure the DIN rail is properly prepared and secured. The thermostats require a 35mm DIN rail for mounting.

Mounting the KTO011 & KTS011

To mount the thermostats, follow these steps:

1. Align the thermostat with the DIN rail.
2. Secure the thermostat using the provided screws.
3. Connect the control output type according to your application requirements.

How to Use the KTO011 & KTS011

Setting the Desired Temperature

To set the desired temperature, rotate the thermostat's adjustment knob until the desired temperature is displayed on the analog dial.

Adjusting the Control Output Type

The KTO011 and KTS011 offer three control output types:

• Red color Normal Closed
• Blue color Normal Open
• Normal Closed and Normal Open

Select the appropriate output type based on your specific application needs.

Maintenance & Troubleshooting

Cleaning & Storage

Regular cleaning and proper storage are essential for maintaining the performance and longevity of the KTO011 and KTS011 industrial thermostats.

Common Issues & Solutions

If you encounter any issues with the thermostats, refer to the troubleshooting guide provided in the user manual. Common issues include:

• Incorrect temperature readings: Verify the thermostat's settings and calibration.
• No control output: Check the control output type and connections.
• Thermostat malfunction: Contact EARUELETRIC for repair or replacement.
