How to Install Motorcycle Brake Shoes: A Comprehensive Guide

Introduction to Motorcycle Brake Shoes

Overview of Brake Shoes

Brake shoes are essential components of a motorcycle's braking system. They play a crucial role in ensuring the safety and reliability of your ride. These metal plates with friction material attached are responsible for slowing down or stopping the motorcycle by pressing against the brake drum.

Key Features of Brake Shoes

The key features of brake shoes include their ability to withstand high temperatures, their durability, and their compatibility with various motorcycle models. Brake shoes come in different types and sizes, making it essential to choose the right one for your motorcycle.

Importance of Brake Shoes

Brake shoes are vital for maintaining the safety and performance of your motorcycle. Regular inspection and replacement of worn-out brake shoes can prevent accidents and ensure a smooth ride.

Types of Motorcycle Brake Shoes

CG125 Brake Shoe

The CG125 brake shoe is designed specifically for the Honda CG125 motorcycle. These brake shoes are known for their durability and high-quality friction material.

Wave 100/110/125 Brake Shoe

The Wave 100/110/125 brake shoe is compatible with the Honda Wave series motorcycles. These brake shoes provide reliable performance and are easy to install.

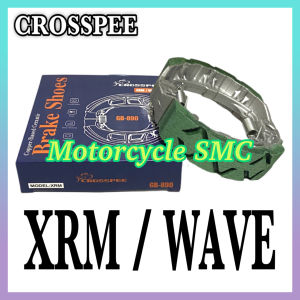

XRM 110/125 Brake Shoe

The XRM 110/125 brake shoe is designed for the Honda XRM series motorcycles. These brake shoes offer excellent stopping power and are built to last.

Installing Motorcycle Brake Shoes

Preparing for Installation

Before installing new brake shoes, it is crucial to gather all necessary tools and materials. These include a wrench, screwdriver, brake shoe kit, and safety gear.

Step-by-Step Installation Process

1. Remove the motorcycle wheel and brake drum.
2. Inspect the brake shoes for any signs of wear or damage.
3. Remove the old brake shoes and install the new ones.
4. Adjust the brake shoe position and clearance.
5. Reinstall the brake drum and wheel.

Post-Installation Tips

After installing new brake shoes, it is essential to test the brakes before riding. Ensure that the motorcycle stops smoothly and safely. Regularly inspect the brake shoes for wear and tear, and replace them if necessary.

Troubleshooting Common Issues

Loose Brake Shoes

If the brake shoes become loose, they may cause the motorcycle to vibrate or make noise during braking. To fix this issue, adjust the brake shoe position and clearance.

Noisy Brake Shoes

Noisy brake shoes can be caused by worn-out friction material or loose brake shoes. Inspect the brake shoes for any signs of wear or damage, and replace them if necessary.

Worn Out Brake Shoes

Worn-out brake shoes can compromise the safety and performance of your motorcycle. Regularly inspect the brake shoes for wear and tear, and replace them if necessary.

Conclusion

Installing motorcycle brake shoes is a straightforward process that can be done at home with the right tools and materials. By following this guide, you can ensure the safety and reliability of your ride. Remember to regularly inspect and replace worn-out brake shoes to maintain optimal performance.
