Hinge Hole Drilling Guide: 35mm & 40mm Hinge Installation Jig

Understanding Door Cabinet Hinge Locators

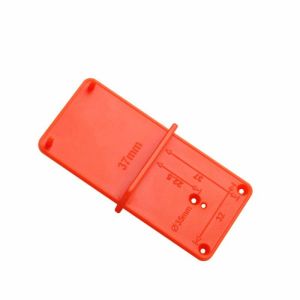

A hinge hole drilling guide, such as the Door Cabinet Hinge Locator, is a vital woodworking tool designed to help users accurately drill holes for hinges on cabinet doors. This ensures proper alignment and a smooth opening and closing mechanism.

Key Features of Hinge Hole Drilling Guide

The Door Cabinet Hinge Locator offers several key features that make it an essential tool for any woodworker or cabinet maker. Some of these features include:

• Accurate drilling of hinge holes for both 35mm and 40mm hinges
• Easy-to-use design that minimizes errors during installation
• Compatibility with various cabinet door sizes and materials

Choosing the Right Woodworking Tool

When selecting a hinge hole drilling guide, consider factors such as the size of the cabinet doors you'll be working with, the type of hinges you plan to use, and the level of accuracy you require. The Door Cabinet Hinge Locator is a versatile option that can handle both 35mm and 40mm hinges, making it a great choice for most woodworking projects.

Preparing for Hinge Installation

Before installing hinges on your cabinet doors, take the time to measure and mark the doors accurately. This will ensure proper alignment and a smooth opening and closing mechanism.

Measuring and Marking Cabinet Doors

Measure the distance between the edge of the door and the center of the hinge. This measurement will determine the placement of the hinge holes. Use a pencil to mark the location of the holes on the edge of the door.

Selecting the Correct Hinge Size

Choose the appropriate size hinge for your cabinet doors. The Door Cabinet Hinge Locator is compatible with both 35mm and 40mm hinges, so select the size that best fits your project.

Installing Hinges with a Hinge Installation Jig

Using a hinge installation jig like the Door Cabinet Hinge Locator will help you achieve accurate and consistent results when installing hinges on your cabinet doors.

Properly Positioning the Jig

Position the jig on the edge of the cabinet door, aligning it with the marked hinge hole locations. Secure the jig in place using the included clamps.

Drilling Precise Hinge Holes

Using a drill bit that matches the size of the hinge screws, carefully drill the holes through the jig and into the cabinet door. This will ensure precise placement and alignment of the hinge holes.

Securing the Hinges

Once the holes have been drilled, remove the jig and attach the hinges to the cabinet door using the appropriate screws. Tighten the screws securely, but avoid over-tightening, which could damage the hinge or the door.

Troubleshooting Common Issues

Even with the use of a hinge installation jig, some issues may arise during the hinge installation process. Here are some common problems and solutions:

Misaligned Hinge Holes

If the hinge holes are misaligned, double-check your measurements and markings before drilling. If necessary, use a drill bit slightly larger than the original to correct the alignment.

Improperly Installed Hinges

If the hinges are not installed correctly, check that the screws are tight and that the hinges are aligned properly. If necessary, remove the hinges and re-drill the holes using the hinge installation jig.
