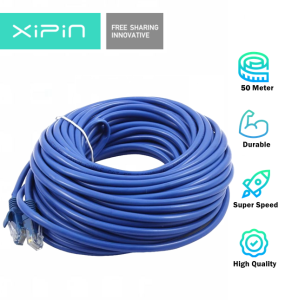

5M to 50M CAT5E Ethernet Cable: A Comprehensive Guide

Introduction to CAT5E Ethernet Cable

CAT5E Ethernet cable, also known as Category 5 Enhanced Ethernet cable, is a type of twisted pair cable used for network connections. It offers improved performance over its predecessor, CAT5, by reducing crosstalk and providing faster data transmission speeds. CAT5E cables support up to 1000 Mbps (gigabit) data transfer rates, making them ideal for modern networking applications.

Understanding CAT5E Ethernet Cable Specifications

CAT5E cables have specific characteristics that make them suitable for various network environments. Here are some key specifications:

• Model: CAT5E Internet Cable
• ETL Verified: To ETA/TIA
• Channel: 568 Category 5e
• UTP: 4 pairs, 24 AWG
• Patch Cable: 100% brand new and high quality
• Interface Type: RJ-45 connector
• Usage Environment: Indoor
• Wire Diameter: 5.1 mm
• Transmission Speed Data: 100 Mbps
• Applicable Equipment: Computer router, RJ-45 port, network equipment

CAT5E Ethernet Cable Applications

CAT5E Ethernet cables are widely used in residential, commercial, and industrial settings due to their versatility and reliability. They are commonly employed in:

• Local Area Networks (LAN)
• Wide Area Networks (WAN)
• Telecommunications systems
• Voice-over-IP (VoIP) systems
• Digital video systems

Choosing the Right Length for Your Network Needs

Selecting the appropriate length of CAT5E Ethernet cable is crucial for optimal network performance. Here are some common lengths and their recommended usage scenarios:

5M CAT5E Ethernet Cable

A 5-meter CAT5E Ethernet cable is ideal for short-range connections within a single room or office space. This length is perfect for connecting devices like computers, routers, and switches that are in close proximity.

10M CAT5E Ethernet Cable

A 10-meter CAT5E Ethernet cable provides a longer reach than the 5-meter option, making it suitable for medium-sized rooms or small offices. This length is often used for connecting devices in adjacent rooms or in a home office setup.

20M CAT5E Ethernet Cable

A 20-meter CAT5E Ethernet cable offers extended coverage, allowing you to connect devices in larger spaces such as open-plan offices or multi-room homes. This length is also useful for connecting devices in different floors or levels of a building.

50M CAT5E Ethernet Cable

A 50-meter CAT5E Ethernet cable is designed for long-distance connections, making it suitable for large-scale networks or industrial environments. This length is often used for connecting devices across multiple rooms, floors, or buildings.

Installation and Setup

Proper installation and setup of CAT5E Ethernet cables are essential for ensuring optimal network performance. Here are some steps to follow:

Preparing Your Network Equipment

Before installing a CAT5E Ethernet cable, make sure that all network equipment, such as routers, switches, and computers, are powered off. This will prevent any potential damage during the installation process.

Connecting CAT5E Ethernet Cable to Your Devices

Once your network equipment is prepared, connect the CAT5E Ethernet cable to the appropriate ports on your devices. Ensure that the RJ-45 connectors are securely inserted into the ports to maintain a stable connection.

Troubleshooting Common Issues

If you encounter issues with your CAT5E Ethernet cable, here are some common troubleshooting tips:

• Check Connections: Verify that the RJ-45 connectors are properly inserted into the ports.
• Test Other Devices: Try connecting the cable to different devices to determine if the issue is with the cable or the device.
• Inspect for Damage: Check the cable for any visible signs of damage, such as cuts or kinks.
• Replace the Cable: If the issue persists, consider replacing the CAT5E Ethernet cable with a new one.
