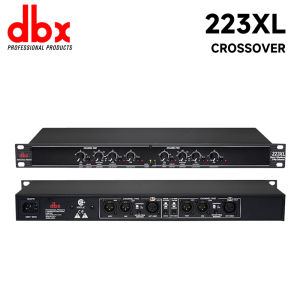

DBX 234XL/ 223XL /386XL/234XS Stereo 2 way/3 way / 4way Crossover (There is a choice of black and white)

Introduction to DBX Crossovers

DBX is a renowned brand in the audio industry, known for its high-quality audio components. The DBX 234XL, 223XL, and 386XL are stereo crossovers designed for optimal performance in various audio applications. These crossovers come in two color options, black and white, allowing users to choose the one that best suits their setup.

Overview of DBX Audio Components

DBX audio components are built with precision and reliability in mind. They offer a wide range of products, including amplifiers, equalizers, and crossovers, to meet the needs of professional and amateur audio enthusiasts alike. The DBX 234XL, 223XL, and 386XL are some of the most popular models in their crossover lineup.

Key Features of DBX 234XL/223XL/386XL

The DBX 234XL, 223XL, and 386XL stereo crossovers share several key features that make them stand out from other models in the market:

• Stereo 2/3 Way, Mono 4 Way Crossover: These crossovers support both stereo and mono configurations, making them versatile enough for various audio setups.
• TRS Differentially Balanced In and Outs (234) - XLR Differentially Balanced Ins and Outs (234XL): The TRS and XLR inputs and outputs ensure low noise and interference-free signal transmission.
• Mode switch for stereo mono 4 way or 2 way/3 way operation: Users can easily switch between different crossover modes to suit their specific audio requirements.
• Low Frequency summed (subwoofer) output: This feature allows users to connect a subwoofer for enhanced bass response.
• x10 range switch on both channels: The x10 range switch provides flexibility in adjusting the crossover frequency range.
• 40 Hz High Pass (Low, Cut) filter both channels: The high-pass filter ensures that only frequencies above 40 Hz are passed through, preventing unwanted low-frequency signals from interfering with the audio quality.

Understanding the DBX 234XL Stereo Crossover

The DBX 234XL stereo crossover is a versatile audio component that supports both stereo and mono configurations. It features TRS and XLR inputs and outputs, ensuring low noise and interference-free signal transmission. The mode switch allows users to easily switch between different crossover modes, such as stereo 2-way, stereo 3-way, and mono 4-way, depending on their specific audio requirements.

Exploring TRS Differentially Balanced In and Outs

The TRS and XLR inputs and outputs on the DBX 234XL stereo crossover are designed to provide low noise and interference-free signal transmission. This ensures that the audio quality remains pristine throughout the entire audio chain. The TRS inputs and outputs are particularly useful for connecting unbalanced audio sources, while the XLR inputs and outputs are ideal for balanced audio connections.

Mode Switch for Stereo/Mono Operation

The mode switch on the DBX 234XL stereo crossover allows users to easily switch between different crossover modes, such as stereo 2-way, stereo 3-way, and mono 4-way. This feature makes the crossover versatile enough to be used in various audio setups, whether it's a home theater system, a live sound rig, or a studio recording setup.

Configuring DBX Crossovers for Optimal Performance

To get the best performance out of your DBX crossover, it's essential to configure it correctly. Here are some tips to help you get started:

• Low Frequency Summed Output: Connect a subwoofer to the low-frequency summed output to enhance the bass response of your audio system.
• Utilizing the x10 Range Switch: Adjust the x10 range switch on both channels to set the crossover frequency range according to your specific audio requirements.

Customizing Your DBX Crossover Experience

DBX offers a range of accessories and audio components to complement your crossover setup. Here are some examples:

• Black & White Stereo Crossovers: Choose from the black and white color options to match your audio equipment and setup.
• DBX 223XL Audio Accessories: Enhance your crossover experience with additional accessories, such as mounting brackets, power supplies, and more.

Conclusion & Final Thoughts

The DBX 234XL, 223XL, and 386XL stereo crossovers are versatile audio components that offer a wide range of features and benefits. Whether you're a professional audio engineer or an amateur enthusiast, these crossovers can help you achieve the perfect audio setup for your needs. With their robust build quality, reliable performance, and user-friendly design, they are sure to become a valuable addition to any audio setup.
