UNO R3 Advance Upgraded Starter Arduino Kit 2022/2023: A Comprehensive Guide

Product Overview

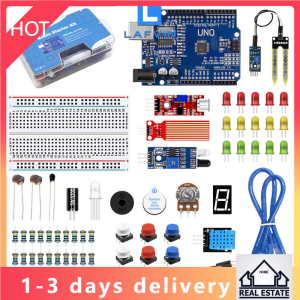

The UNO R3 Advance Upgraded Starter Arduino Kit 2022/2023 by Makerlab Electronics is a fantastic tool for anyone interested in learning about electronics and programming. This full set Arduino kit comes with a comprehensive PDF manual, making it easy for beginners to get started. The kit includes various components such as LEDs, switches, sensors, and modules, allowing users to explore different projects and applications.

Kit Components

The UNO R3 Advance Upgraded Starter Arduino Kit comes with a wide range of components, including:

• 5 yellow LEDs
• 5 green LEDs
• 5 red LEDs
• 1 RGB LED
• 1 thermistor
• 1 tilt switch
• 2 photoresistors
• 10 DuPont cables (male to male)
• 30 resistors (3 types)
• 6 button switches
• 1 potentiometer (10K)
• 1 active buzzer
• 1 passive buzzer
• 1 DHT11 sensor
• 1 1-digit 7-segment display
• 1 water level detection sensor module
• 1 sound sensor module
• 1 soil moisture sensor
• 1 obstacle avoidance module
• 1 USB data cable
• 1 plate
• 1 UNO R3 CH340 board

Key Features

The UNO R3 Advance Upgraded Starter Arduino Kit has several key features that make it stand out:

• Comprehensive PDF Manual: The kit comes with a detailed manual that guides users through the setup process and provides step-by-step instructions for various projects.
• Wide Range of Components: With a variety of LEDs, switches, sensors, and modules, users can explore different projects and applications.
• UNO R3 CH340 Board: The UNO R3 CH340 board is compatible with the Arduino IDE, making it easy for users to program and control their projects.

Getting Started

Getting started with the UNO R3 Advance Upgraded Starter Arduino Kit is simple and straightforward.

Unboxing & Setup

After unboxing the kit, users will find all the components neatly organized in a storage box. The first step is to familiarize yourself with the components and their functions. Next, connect the UNO R3 CH340 board to your computer using the USB data cable. Make sure to install the Arduino IDE software on your computer before proceeding.

Installation & Configuration

Once the Arduino IDE software is installed, open it and select the appropriate board and port settings. Follow the instructions in the PDF manual to configure the board and upload a sample sketch to test its functionality. This will ensure that everything is working correctly before starting any projects.

Exploring the Components

The UNO R3 Advance Upgraded Starter Arduino Kit comes with a variety of components that can be used in different projects and applications.

LEDs & Switches

LEDs and switches are essential components in any electronics project. The kit includes several types of LEDs, including yellow, green, red, and RGB LEDs. These can be used to create visual effects or indicate the status of a circuit. The kit also includes button switches and a potentiometer, which can be used to control the brightness of LEDs or trigger actions in a circuit.

Sensors & Modules

Sensors and modules are crucial components in any electronics project, allowing users to interact with the environment and perform various tasks. The kit includes several sensors and modules, including a thermistor, tilt switch, photoresistors, DHT11 sensor, water level detection sensor module, sound sensor module, soil moisture sensor, and obstacle avoidance module. These sensors and modules can be used in various projects, such as temperature monitoring, light sensing, water level detection, sound detection, soil moisture measurement, and obstacle avoidance.

Sample Projects & Tutorials

The UNO R3 Advance Upgraded Starter Arduino Kit comes with a comprehensive PDF manual that provides step-by-step instructions for various projects and tutorials.

Basic Circuits

The manual includes instructions for creating basic circuits using LEDs, switches, and resistors. These circuits can be used to learn about basic electronic concepts such as voltage, current, and resistance.

Intermediate Projects

The manual also includes instructions for creating intermediate projects using sensors and modules. These projects can help users learn about more advanced electronic concepts such as analog-to-digital conversion, signal processing, and data logging.

Advanced Applications

Finally, the manual includes instructions for creating advanced applications using multiple sensors and modules. These applications can help users learn about complex electronic concepts such as machine learning, artificial intelligence, and Internet of Things (IoT) technologies.
