【Clearance Markdowns】 JPnator D52 2066 6IN1 din AC 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter

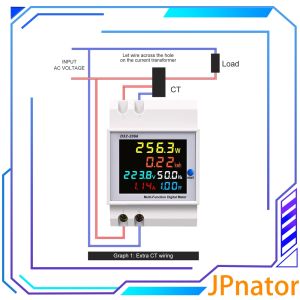

1.Accuracy: 1％±2 words2. Range:AC voltage: AC 40.0-300.0V or AC 250.0-450.0V (You should select one type of the meter in your order)The measuring range 40-300V without limitation, and it can be used in grid power, photovoltaic and inverter current250-450V only can use for 380VAC Current:AC 0-100.0A, the current resolution is 0.01A .Frequence: 45.0Hz – 65.0HzPower Factor: 0.00-1.00PFElectric Power: 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W.Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh3. Speed: 2 times per second4. Size: 54×80×645. Installation: Din-Rail Application Method1. Connect the measure voltage to the 1 and 2 terminal2. Connections of meter with internal current transformer as graph 1. Make the wire through the hole meter and the direction chose arbitrarily.3. Connections of meter with external current transformer as graph 2. Make the wire through the hole meter, and connect the two wires of the secondary transformer to the 3 and 4 terminal.4. When power on, the meter display the measure parameters.5. When power on, you can press the button of SAM last for 5 seconds, then the electric energy will to be zero and start to cumulate when release the button. And when power off, the meter can save the value of electric energy and go on cumulating data when the meter power-on next. Attention: The meter can only use for measure 45-65Hz AC city electricity.
