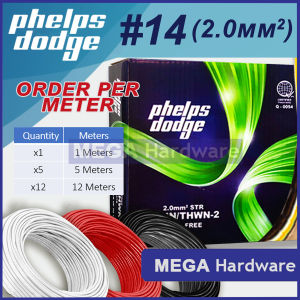

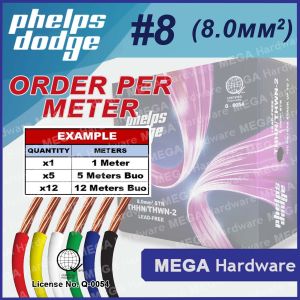

PHELPS DODGE PD THHN/THWN-2 2.0mm2 3.5mm2 5.5mm2 8.0mm2 Stranded Copper Wire (# 8 10 12 14) BY METER

What Are Multi-Strand Copper Wires?

Multi-strand copper wires, also known as stranded copper wires, consist of multiple thin strands of copper twisted together to form a single conductor. This configuration offers several advantages over solid copper wires, making them a popular choice for a variety of applications.

Understanding the Basics of Stranded Copper Wire by Meter

Stranded copper wires are measured by their cross-sectional area, usually expressed in square millimeters (mm²) or American Wire Gauge (AWG). In this article, we will discuss the PHELPS DODGE PD THHN/THWN-2 wire, which comes in four sizes: 2.0mm², 3.5mm², 5.5mm², and 8.0mm², corresponding to AWG #8, #10, #12, and #14, respectively.

Exploring the Benefits of Using Multi-Strand Copper Wire

Multi-strand copper wires offer several benefits over solid copper wires:

• Improved flexibility: Stranded wires are more flexible, making them easier to bend and route through tight spaces.
• Better resistance to fatigue: The multiple strands distribute stress evenly, reducing the risk of breakage due to repeated bending.
• Enhanced resistance to vibration: Stranded wires can withstand vibrations better than solid wires, making them ideal for applications in industrial environments.

Applications of Multi-Strand Copper Wire

Multi-strand copper wires are widely used in various industries, including:

• Residential and commercial electrical installations
• Industrial machinery and equipment
• Automotive and aerospace applications
• Telecommunications and data transmission systems

PHELPS DODGE PD THHN/THWN-2 Wire: An In-depth Look

PHELPS DODGE PD THHN/THWN-2 wire is a high-quality stranded copper wire designed for use in electrical installations. This wire is suitable for both indoor and outdoor applications and is UL listed and CSA certified.

Key Features of PHELPS DODGE PD THHN/THWN-2 Wire

The PHELPS DODGE PD THHN/THWN-2 wire offers several key features:

• Stranded copper conductor: The wire consists of multiple strands of high-purity copper, providing excellent conductivity and flexibility.
• PVC insulation: The wire is covered with a durable PVC insulation that provides protection against moisture, abrasion, and chemicals.
• UL and CSA certification: The wire meets the safety standards set by Underwriters Laboratories (UL) and Canadian Standards Association (CSA).

Choosing the Right Wire Size: 2.0mm² to 8.0mm²

Selecting the appropriate wire size is crucial for ensuring the safe and efficient operation of electrical systems. The PHELPS DODGE PD THHN/THWN-2 wire is available in four sizes: 2.0mm² (#8), 3.5mm² (#10), 5.5mm² (#12), and 8.0mm² (#14). Each size has a specific current-carrying capacity, so it's essential to choose the right wire size based on the electrical load requirements.

How to Purchase PHELPS DODGE PD THHN/THWN-2 Wire by Meter

PHELPS DODGE PD THHN/THWN-2 wire can be purchased by meter from authorized distributors or online retailers. When buying, make sure to specify the desired wire size and length to ensure you receive the correct product.

Installation and Usage Guidelines

Proper installation and usage of PHELPS DODGE PD THHN/THWN-2 wire are essential for ensuring the safety and efficiency of electrical systems.

Preparing for Installation: Tools and Equipment Needed

Before installing PHELPS DODGE PD THHN/THWN-2 wire, gather the necessary tools and equipment, including:

• Wire strippers
• Crimping pliers
• Wire connectors
• Voltage tester

Step-by-step Guide to Installing PHELPS DODGE PD THHN/THWN-2 Wire

Follow these steps to install PHELPS DODGE PD THHN/THWN-2 wire safely and efficiently:

1. Turn off the power supply to the circuit where the wire will be installed.
2. Strip the insulation from the wire ends using wire strippers.
3. Connect the wire to the appropriate terminals using wire connectors and crimping pliers.
4. Test the connection using a voltage tester to ensure proper installation.

Troubleshooting Common Issues During Installation

Some common issues that may arise during PHELPS DODGE PD THHN/THWN-2 wire installation include:

• Incorrect wire size: Make sure to choose the appropriate wire size based on the electrical load requirements.
• Poor connections: Ensure that wire connectors are properly crimped and secure.
• Overheating: Check for loose connections or overloaded circuits that may cause overheating.

Conclusion

PHELPS DODGE PD THHN/THWN-2 wire is a high-quality stranded copper wire ideal for various electrical applications. Its flexibility, durability, and safety features make it a popular choice among professionals and DIY enthusiasts alike. When choosing the right wire size and following proper installation guidelines, PHELPS DODGE PD THHN/THWN-2 wire can provide reliable and efficient electrical connections for years to come.

Recap of PHELPS DODGE PD THHN/THWN-2 Wire Features and Benefits

• Stranded copper conductor
• PVC insulation
• UL and CSA certification
• Available in four sizes: 2.0mm² (#8), 3.5mm² (#10), 5.5mm² (#12), and 8.0mm² (#14)

Final Thoughts on Multi-Strand Copper Wire Usage

Multi-strand copper wires, such as PHELPS DODGE PD THHN/THWN-2 wire, offer several advantages over solid copper wires. Their improved flexibility, better resistance to fatigue and vibration, and enhanced safety features make them a preferred choice for many electrical applications. By understanding the benefits and proper usage of multi-strand copper wires, professionals and DIY enthusiasts can ensure safe and efficient electrical installations.
