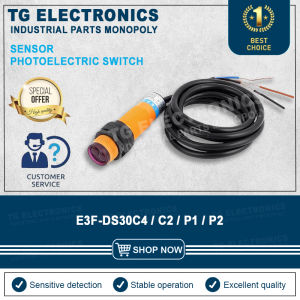

Photoelectric Proximity Switch Sensor 24V three-wire NPN normally open E3F-DS30C4/C2/P1/P2 E3F-DS100C4/C2/P1/P2

Introduction to Three-Wire Proximity Switches

Three-wire proximity switches, such as the E3F-DS30C4/C2/P1/P2 and E3F-DS100C4/C2/P1/P2 photoelectric sensors, are widely used in industrial automation applications. These sensors provide a reliable solution for detecting objects or materials, enabling efficient operation and increased accuracy.

Understanding 24V NPN Normally Open Switches

The E3F-DS30C4/C2/P1/P2 and E3F-DS100C4/C2/P1/P2 photoelectric proximity switches are designed to operate at 24V NPN normally open configurations. This means that when no object is detected, the output remains open, and when an object is detected, the output closes, allowing current to flow through the circuit.

Key Features of E3F-DS30C4/C2/P1/P2 & E3F-DS100C4/C2/P1/P2

Both models of photoelectric proximity switches share several key features that make them suitable for various industrial applications:

• Compact Size: The sensors have a compact design, making them easy to install and integrate into existing systems.
• Wide Detection Range: Both models offer a wide detection range, allowing them to detect objects at varying distances.
• High Sensitivity: These sensors have high sensitivity, enabling accurate detection even for small or reflective objects.
• Robust Construction: The E3F-DS30C4/C2/P1/P2 and E3F-DS100C4/C2/P1/P2 photoelectric proximity switches are built to withstand harsh industrial environments, ensuring long-lasting performance.

Applications and Benefits

Photoelectric proximity switches like the E3F-DS30C4/C2/P1/P2 and E3F-DS100C4/C2/P1/P2 offer numerous advantages for industrial automation solutions:

Industrial Automation Solutions

These sensors can be used in various industrial automation applications, such as:

• Material handling systems
• Conveyor belt monitoring
• Packaging machines
• Assembly lines

Enhancing Efficiency and Accuracy

By accurately detecting objects and materials, photoelectric proximity switches help improve overall efficiency and accuracy in industrial processes.

Installation and Setup

To ensure proper installation and setup of the E3F-DS30C4/C2/P1/P2 and E3F-DS100C4/C2/P1/P2 photoelectric proximity switches, follow these steps:

Step-by-Step Guide

1. Mount the sensor securely in the desired location, ensuring it is aligned with the target object.
2. Connect the sensor's power supply and output wires according to the manufacturer's instructions.
3. Adjust the sensitivity settings, if necessary, to optimize detection performance.

Troubleshooting Common Issues

If you encounter any issues during installation or operation, refer to the troubleshooting guide provided by the manufacturer. Common issues include:

• Incorrect wiring
• Sensor misalignment
• Interference from external sources

Maintenance and Support

To maintain optimal performance of the E3F-DS30C4/C2/P1/P2 and E3F-DS100C4/C2/P1/P2 photoelectric proximity switches, follow these tips:

Regular Maintenance Tips

• Inspect the sensor periodically for any signs of wear or damage.
• Clean the lens and housing regularly to ensure proper operation.
• Verify the sensor's sensitivity settings to maintain accurate detection.

Contacting Customer Support

For any further assistance or support, contact the manufacturer's customer service team.
