Washer Suspension Rod Kit Replacement W10780048

Understanding the Washer Suspension Rod Kit

What is a Washer Suspension Rod Kit?

A washer suspension rod kit, such as the W10780048, is a crucial component of your washing machine's internal hardware. It consists of several rods, suspension balls, and bushings that work together to support the drum and ensure smooth operation during the wash cycle. Over time, these components can wear out, leading to issues such as noise, vibration, or even failure of the machine. Replacing the washer suspension rod kit can help restore optimal performance and extend the life of your appliance.

Components of a Washer Suspension Rod Kit

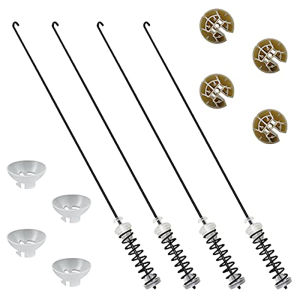

The W10780048 washer suspension rod kit includes the following components:

• 4 x Rods
• 4 x Suspension balls
• 4 x Bushings

These parts work together to provide support and stability for the drum, ensuring smooth rotation and minimizing noise and vibration during the wash cycle.

Preparing for the Replacement

Tools and Materials Needed

Before you begin replacing your washer suspension rod kit, gather the necessary tools and materials:

• New W10780048 washer suspension rod kit
• Phillips head screwdriver
• Adjustable wrench
• Socket set
• Penetrating oil (optional)

Safety Measures

When working with your washing machine, it's essential to take proper safety precautions:

• Unplug the machine before beginning any repairs.
• Ensure the drum is empty and dry.
• Work in a well-lit area.
• Wear protective gloves and eyewear.

Step-by-Step Guide to Replace a Washer Suspension Rod Kit

Removing the Old Kit

1. Locate the front panel of your washing machine and remove the screws holding it in place.
2. Gently pull the front panel away from the machine, exposing the drum and internal components.
3. Identify the suspension rods and locate the suspension balls and bushings.
4. Using a socket set or adjustable wrench, remove the nuts securing the suspension rods.
5. Carefully lift the drum out of the machine, taking note of its position and any connections that may need to be disconnected.
6. Remove the old suspension rods, suspension balls, and bushings.

Installing the New Kit

1. Install the new suspension rods, making sure they are properly aligned with the drum.
2. Place the new suspension balls onto the rods, ensuring they fit securely.
3. Install the new bushings onto the rods, again making sure they fit securely.
4. Lower the drum back into the machine, reconnecting any necessary connections.
5. Secure the nuts onto the suspension rods using a socket set or adjustable wrench.
6. Reattach the front panel of the washing machine, securing it with screws.

Testing the New Kit

After replacing the washer suspension rod kit, test the machine to ensure proper operation:

1. Plug the machine back in and fill it with water.
2. Run a short wash cycle, observing the drum's movement and listening for any unusual noises or vibrations.
3. If everything seems to be working correctly, continue using the machine as normal.

Troubleshooting Common Issues

Loose or Misaligned Rods

If you notice loose or misaligned rods after replacing the washer suspension rod kit, recheck the installation process and ensure all components are properly secured.

Faulty Suspension Balls or Bushings

If you experience issues with the new suspension balls or bushings, double-check their installation and consider replacing them if necessary.

Conclusion

Replacing your washer suspension rod kit is a straightforward process that can help extend the life of your appliance and restore optimal performance. By following these steps and taking proper safety precautions, you can successfully replace the W10780048 washer suspension rod kit and enjoy a smoother, quieter wash cycle.
