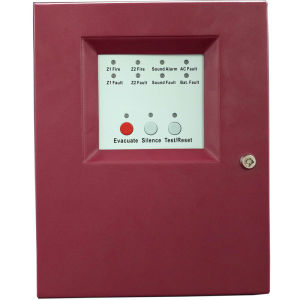

2 Zones 4 Zone Fire Alarm Control Panel with AC power input Fire Alarm Control System Conventional Fire Control Panel Fire Alarm Control Panel

2 Zones Fire Alarm Control Panel with AC power input Fire Alarm Control System Conventional Fire Control Panel（Battery not included）It only includ a panel. if you want a complete fire alarm system ,please add smoke detector,heat detector, call point alarm,sounder,bell and so on. it can not work with Repeater display panel1. IntroductionThe information provided in this manual covers the Master and Slave fire alarm control panel. The panel range is designed to meet the requirements of EN54 Parts 2 & 4.The fire alarm control panels （2 Zones) provide all of the sophisticated features required of a leading edge conventional fire alarm system along with the simple operation and efficient installation methods demanded by both installers and building users.A comprehensive range of auxiliary devices is available to operate with the fire control panels including optical, ionization,photoelectric, photoelectric-thermal and heat detectors.Each of the system components has been specifically designed to operate as part of the system. This provides assurancethat the control panel, smoke detectors, interface devices and the ancillary components are all fully compatible with one another and that the full range of system functionality is supported by each device.1.1 Product FeaturesThe panels have the following key features:2 conventional input zones.1 notification appliance circuits (NAC) with built-in synchronization for ANSI 3.41and Gentex.The panel comes with a 2 amp power supply.Dedicated alarm and trouble relays.1 RS485 can be able to connect the other panel.Housed in a 205mm W x 258mm H x 81mm D metal enclosure.Enclosure supports two 12V, 4Ah backup batteries.The panel can be used independently or connect by RS4851.2 Electrical SpecificationsPrimary AC 120VAC 50/60 Hz Power supply rating 240VAC 50/60 HzPower supply rating 2 Amps @ 24VDCMaximum Battery Charging Current 0.98 Amps @ 26VDCInitiating Device Circuits 2 Zones Alarm Zone 2Normal Initiating Operating Voltage 23VDC, Maximum 26VDC, regulatedNormal Quiescent Current (normal status) <50mAAlarm Current (not include the others) <150 mAShort Circuit Initiating Current (per zone) 35mA MaximumMaximum Initiating Resistance (per zone) 10 ohmsInitiating End-of-Line Resistor 4K7 ohms, 1/2W 5%Standby Detector Current (per zone) 4mA maximumMaximum Detector Count (per zone) 30 detectorsInitiating Cabling Type 18AWG Twisted Shielded pair (14 – 18 AWG)Detector Base Impedance 430 ohmsNotification Appliance Circuits 1 NACs, Special ApplicationMaximum NAC Current Rating 1 Amp maximum per circuitNAC Operating Voltage 26VDC Nominal, 30VDC Maxim
