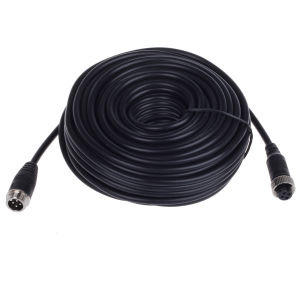

4Pin Connector Plug Video and Power Shield AV Cable Waterproof Shock Proof for Car Truck BUS Caravans Motorhome Horse Trailer Reverse Camera Parking

Introduction to 4Pin Connector Plug Video & Power Shield AV Cable

The 4Pin Connector Plug Video & Power Shield AV Cable is a high-quality solution designed specifically for trucks, caravans, buses, motorhomes, and horse trailers. This cable offers waterproof and shock-proof features, making it an ideal choice for reverse camera parking systems. With its one-cable solution, you can easily connect both power and signal transmission without the need for separate cables.

Overview of the 4Pin Connector Plug Video & Power Shield AV Cable

The 4Pin Connector Plug Video & Power Shield AV Cable is a versatile cable designed to handle both power and signal transmission for reverse camera parking systems. Its waterproof and shock-proof features make it ideal for various vehicles, including trucks, caravans, buses, motorhomes, and horse trailers. The cable supports power input ranging from DC 12V to DC 24V, ensuring compatibility with a wide range of vehicles.

Key Features of the 4Pin Connector Plug Video & Power Shield AV Cable

• High-Quality 4Pin Shield Cable: The cable is designed with a thick hard wire that effectively shields vehicle circuit interference better than normal AV cables.
• Waterproof and Shock-Proof: The cable is built to withstand harsh weather conditions and physical shocks, ensuring reliable performance.
• One Cable Solution: No separate power cable is needed to connect the camera, simplifying installation and reducing clutter.

How to Install the 4Pin Connector Plug Video & Power Shield AV Cable

Preparing the Motorhome/Horse Trailer for Installation

Before installing the 4Pin Connector Plug Video & Power Shield AV Cable, ensure that your motorhome or horse trailer is clean and free from debris. Turn off the vehicle's ignition and disconnect the battery to avoid any electrical hazards during installation.

Connecting the 4Pin Connector Plug Video & Power Shield AV Cable

To connect the cable, follow these steps:

1. Identify the reverse camera parking system's power source and signal output.
2. Connect the cable's power input to the vehicle's power source (DC 12V – DC 24V).
3. Connect the cable's signal output to the reverse camera parking system's signal input.
4. Secure the cable in place using appropriate clamps or zip ties to prevent damage from vibrations or movement.

Testing the Installation

After connecting the 4Pin Connector Plug Video & Power Shield AV Cable, test the installation by turning on the vehicle's ignition and activating the reverse camera parking system. Ensure that the camera displays a clear and stable image, and that there are no signs of interference or signal loss.

Benefits of Using the 4Pin Connector Plug Video & Power Shield AV Cable

Enhanced Signal Transmission

The thick hard wire design of the 4Pin Connector Plug Video & Power Shield AV Cable effectively shields vehicle circuit interference, resulting in enhanced signal transmission. This ensures that the reverse camera parking system provides clear and stable images, improving overall visibility and safety.

Improved Power Transmission

With its wide range of power input compatibility (DC 12V – DC 24V), the 4Pin Connector Plug Video & Power Shield AV Cable offers improved power transmission. This ensures that the reverse camera parking system receives sufficient power, even in harsh weather conditions or during extended use.

Increased Durability and Protection

The waterproof and shock-proof features of the 4Pin Connector Plug Video & Power Shield AV Cable make it highly durable and resistant to damage. This ensures reliable performance and longevity, even in challenging environments.

Conclusion

The 4Pin Connector Plug Video & Power Shield AV Cable is a high-quality solution designed specifically for reverse camera parking systems in trucks, caravans, buses, motorhomes, and horse trailers. Its waterproof and shock-proof features, along with its thick hard wire design, make it an ideal choice for enhancing signal transmission, improving power transmission, and increasing durability and protection.
