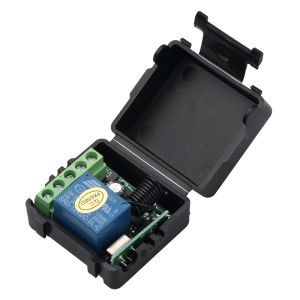

KEBIDU 433MHz DC 12V 10A 1CH RF Wireless Remote Control Switch Receiver Transmitter Set with Learning Remote Controller

Input voltage: 12V

• Receiver sensitivity: > 97 dbm • Transmission distance:> 100m (open space) • Decoding mode: MCU software decoding • Remote storage: 20 • Support remote type: Learning code EV1527 • Operating mode: momentary, toggle, latching time delay (5s ,10s ,15s) • Output terminal: NO , NC , COM • PCB Dimensions: 35x30x18mm (L,W,H) • Remote control battery: 2 x 3V CR2016 button cell

Note: The maximum input power is 12V

Remote Programming

Operating mode:

1. Inching mode: press the remote control, the relay will connect, and then release, the remote control disconnects the relay;

2. Self-locking mode: press the remote control, the relay will connect, and then press the remote control again to disconnect the relay;

3. Latching mode: Press the remote control key A to connect the relay, and press the remote control key B to disconnect the relay.

4. Delay mode: press the remote control, the relay will be connected, release the remote control, and start timing. After 5S, 10S, and 15S(3 gears), the relay will close automatically.

Learning methods:

1. Slow-forward learning method:

Press the Code Pairing button on the control panel once, and the LED indicator will flash once. After the LED indicator lights up, press the button you need to pair on the remote control, the LED indicator on the control panel will flash 3 times which means the pairing is successful.

2. Self-locking learning method:

Press the code pairing button on the control panel twice, and the LED indicator will flash twice. After the LED indicator lights up, press the button you need to pair on the remote control, the LED indicator on the control panel will flash 3 times which means the pairing is successful.

3. Deadlock learning method:

Press the code pairing button on the control panel three times, and the LED indicator will flash three times. After the LED indicator lights up, press the button you need to pair on the remote control, the LED indicator on the control panel will flash 3 times which means the pairing is successful.

4.5S Delay in learning method:

Press the code pairing button on the control panel four times, and the LED indicator will flash four times. After the LED indicator lights up, press the button you need to pair on the remote control, the LED indicator on the control panel will flash 3 times which means the pairing is successful.

5. 10S delay learning method:

Press the code pairing button on the control panel five times, and the LED indicator will flash five times. After the LED indicator lights up, press the button you need to pair on the remote control, the LED indicator on the control panel will flash 3 times which means the pairing is successful.

6. 15S delay learning method:

Press the code pairing button on the control panel six times, and the LED indicator will flash six times. After the LED indicator lights up, press the button you need to pair on the remote control, the LED indicator on the control panel will flash 3 times which means the pairing is successful.

Transparent ing method:

Please press the code pairing button on the control panel eight times, then it will automatically erase all the product learning remote controls. After cleaning, the remote control was previously received storage can no longer be used.

Package Includes：

1 * receiver module 1 * Remote Control (with battery)
