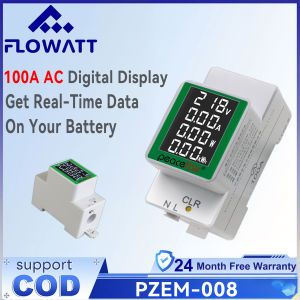

Flowatt AC Din Rail Wattmeter Voltmeter Ammeter Power Meter AC 50-300V 100A Multi-function Volt Amp Power Energy Voltage Current Montior

Product selling points:

1: The structure is clear at a glance

2: Non-contact, safer

3: Built-in CT screw-free wiring prevents poor contact and heat

4: High-grade PC fuel resistant, high temperature resistant and non-flammable

5: Plug and play, simple and efficient, equipped with standard connectors to prevent wrong connection and short circuit

6: Widely usedFunction:Measure AC voltage, current, active power, electricity and display them on the LCD screen UI

BTN wide viewing angle LCD screen: voltage + current + active power + electricity + white backlight1: Voltage

Measuring range: AC50~300V Starting voltage: 50V Measuring accuracy: ±1%

2: Current

Measuring range: 0~100A

Starting current: 0.02A

Measurement accuracy: ±1%

Display format: <10A display such as: 9.99A <100A display such as: 99.9A

3. Active power

Measuring range: 0~30kW

Starting power: 0.5W

Measurement accuracy: ±1%

Display format:

<10W display such as: 9.99w

<100W display such as: 99.9w

<1000W display such as: 999w

<10000W display such as: 9.99kW

≥10000W display such as: 30.0kW

4: Electricity

Measuring range: 0~1999kwh

Overflow retention, unless manually cleared

Measurement accuracy: ±1%

Display format:

<10kWh display such as: 9.99kWh

<100kWh display as: 99.9kwh

<1000kWh display such as: 999kwh

<10000kWh display as: 1999kWhFeature:1. Backlight control

Short press the button to turn on or off the backlight

2. Reset the battery

Press and hold the button for more than 3 seconds until the battery flashes, release the button and short press again to reset the battery, otherwise it will stop flashing after 3 seconds and the battery will not be reset

3. Data preservation

Power, backlight status can be saved when power offNotice:1. This product is suitable for indoor use

2. This product is suitable for communication

3. The measured voltage and current shall not exceed the calibration range

4. Be sure to wire it correctly
