Complete Set HDMI Digital Microscope For Electronics Repair: 13MP Camera & Cantilever Support

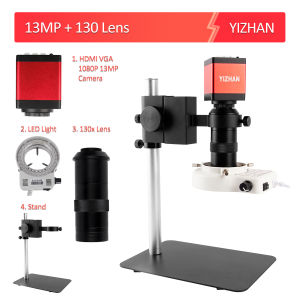

Introduction to YIZHAN D6-S Digital Microscope

The YIZHAN D6-S Digital Microscope is a powerful tool for electronics repair and soldering applications. With its 13MP camera, C Mount Lens, and HDMI-compatible output interface, this microscope provides high-definition images and a convenient viewing experience. In this article, we will explore the key features, technical specifications, and practical applications of the YIZHAN D6-S Digital Microscope.

Key Features

The YIZHAN D6-S Digital Microscope offers a range of features that make it an excellent choice for electronic repairs and soldering applications. Here are some of the key features:

• High Definition: The 13MP camera provides high-resolution images, making it easy to see fine details during repairs.

• Handheld and Portable: The microscope is lightweight and easy to carry, making it ideal for use in various environments.

• Cantilever Support: The cantilever support allows for easy positioning and adjustment of the microscope, providing a stable and comfortable working environment.

• C Mount Lens: The C Mount Lens provides a magnification ratio of 130X/150X, allowing for precise viewing of small components during repairs.

• HDMI-compatible Output Interface: The HDMI output interface allows for easy integration with monitors, projectors, and other display devices.

• Smartphone Integration: The microscope can be connected to smartphones for convenient viewing and sharing of images.

Technical Specifications

Here are some technical specifications of the YIZHAN D6-S Digital Microscope:

• Model Number: D6-S

• Theory: Video Microscope

• Material: Metal

• Drawtube: Monocular

• Magnification Ratio: 500X & Under

• Brand Name: YIZHAN

• Origin: Mainland China

• Certification: CE, FCC

• Effective Pixels: 13MP

• Magnification Ratio: 130X / 150X

• Output Interface: HDMI-compatible, VGA

Using the Digital Microscope for Electronic Repairs

The YIZHAN D6-S Digital Microscope is an ideal tool for electronic repairs and soldering applications. Here are some practical applications of the microscope:

Soldering Applications

The YIZHAN D6-S Digital Microscope provides high-definition images, making it easy to see fine details during soldering applications. The C Mount Lens allows for precise viewing of small components, while the cantilever support provides a stable and comfortable working environment. The microscope can be connected to monitors, projectors, and other display devices via the HDMI output interface, allowing for easy sharing of images.

Magnification & Viewing Options

The YIZHAN D6-S Digital Microscope offers a range of magnification options, including 130X/150X. This allows for precise viewing of small components during repairs. The microscope also provides high-definition images, making it easy to see fine details. The cantilever support allows for easy positioning and adjustment of the microscope, providing a stable and comfortable working environment.

Compatibility & Connectivity

The YIZHAN D6-S Digital Microscope is compatible with a range of devices and interfaces. Here are some compatibility and connectivity options:

Output Interfaces

The YIZHAN D6-S Digital Microscope provides HDMI-compatible and VGA output interfaces, allowing for easy integration with monitors, projectors, and other display devices.

Smartphone Integration

The YIZHAN D6-S Digital Microscope can be connected to smartphones for convenient viewing and sharing of images. This makes it easy to share images with colleagues or clients.

Conclusion & Additional Tips

The YIZHAN D6-S Digital Microscope is a powerful tool for electronics repair and soldering applications. With its high-definition images, cantilever support, and HDMI-compatible output interface, the microscope provides a convenient viewing experience. Whether you're repairing electronics or soldering small components, the YIZHAN D6-S Digital Microscope is an excellent choice.

Additional Tips:

• Always use the microscope in a well-lit environment to ensure optimal viewing conditions.

• Clean the lens regularly to maintain image clarity.

• Store the microscope in a dry, dust-free environment to prevent damage.

• Always follow safety guidelines when using the microscope, especially when working with hot soldering irons.
