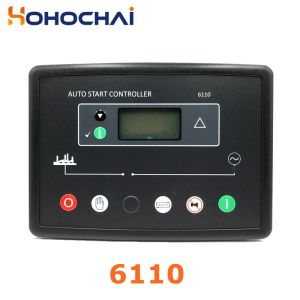

DSE6110 Generator Controller DSE6120 Auto Start Diesel Genset Control Panels

isCustomized：YesModel Number：DSE6110 DSE6120Brand Name：hohochaiOrigin：Mainland Model Name：DSE6110 DSE6120 Generator ControllerStock：YesWarranty：1 YearCertificates:CE, ISO9001MOQ：1 pcPackage：Carton Quality：Best MaterialPurpose:Smart gene setDelivery time：ASAPPlace of Origin：Fujian, (Mainland)DSE6110 Generator Controller DSE6120 Auto Start Diesel Genset Control PanelsProduct IntroductionThe DSE6110 is an Auto Start Control Module and the DSE6120 isan Auto Mains (Utility) Failure Control Module suitable for a wide variety of single gen-set applications.Monitoring speed, frequency,, , oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.Key Features• Back-lit text LCD display• Front panel editing• LED and LCD alarm indication• Power Save mode• CAN and Magnetic Pick-up/Alt.versions available (specify onordering)• PC and front panel configuration• 6 Digital inputs• 3 Analogue inputs• 6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6configurable on CAN version)• Configurable timers and alarms• Alternative configuration• Event Log (10)• Remote Start input• 3 Phase generator monitoring• Monitoring and protection • 3 Phase Mains (Utility) monitoring(DSE6120 only)• Test button (DSE6120 only)• Battery monitoring• Engine pre-heat• Hours counter• Comprehensive shutdown or warning on fault conditionSpecificationCONTINUOUS RATING：8 to 35 Vdc ContinuousCRANKING DROPOUTS：Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.LEDs and backlight will not be maintained during cranking.MAXIMUM OPERATING ： 178 mA at 12 V, 95 mA at 24 VMAXIMUM STANDBY ：88 mA at 12 V, 50 mA at 24 VMAINS (UTILITY) DSE6120 ONLY RANGE：15 V - 333 V AC (L-N)FREQUENCY RANGE：3.5 Hz to 75 HzWORKING TEMPERATURE RANGE：-40 oC to 85 oCModel 6110Model 6120
