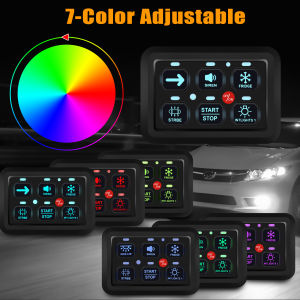

6 Gang 7 Colors Adjust LED Switch Panel Circuit Control Relay System Box Slim Touch Control Panel for Boat Jeep UTV Caravan Blue/Red/Green

Introduction

What is a 6 Gang 7 Colors LED Switch Panel?

A 6 Gang 7 Colors LED Switch Panel is a versatile and stylish lighting control solution designed specifically for boats, Jeeps, UTVs, and caravans. This advanced switch panel features 6 separate gang switches, each with a choice of 7 vibrant LED colors, allowing users to customize their lighting experience effortlessly.

Key Features of the 6 Gang 7 Colors LED Switch Panel

• Input Voltage: 12V DC
• Maximum Current: 60A
• Maximum Power: 600W
• Working Temperature: -40°C~+105°C
• Switch Operation: On-off
• Light Sensor: Available
• Material: IP65 waterproof rating
• Color Options: Red/Green/Blue/7 Color

Installation & Setup

How to Install the 6 Gang 7 Colors LED Switch Panel

Installing the 6 Gang 7 Colors LED Switch Panel is a straightforward process. First, ensure that the power source is disconnected before beginning the installation. Next, carefully mount the switch panel onto the desired surface using the included mounting hardware. Finally, connect the wiring according to the manufacturer's instructions.

Connecting the Adjustable Circuit Control Relay

The adjustable circuit control relay allows users to control various electrical components within their boat, Jeep, UTV, or caravan. To connect the relay, simply attach the appropriate wires to the designated terminals on the switch panel. Refer to the user manual for specific wiring diagrams and instructions.

Setting Up the Slim Touch Control Panel

The slim touch control panel provides a sleek and modern appearance, enhancing the overall aesthetic of any vehicle or boat. To set up the control panel, first connect the power source and then program the desired settings using the intuitive interface. Users can easily customize the LED colors, brightness levels, and other features to suit their preferences.

Performance & Functionality

Input Voltage & Maximum Current

The 6 Gang 7 Colors LED Switch Panel operates on a 12V DC input voltage, making it compatible with most vehicles and boats. With a maximum current capacity of 60A, this switch panel can handle a wide range of electrical loads, ensuring reliable performance in any situation.

Maximum Power & Working Temperature

The switch panel has a maximum power capacity of 600W, allowing it to control various lighting and electrical components within the specified limits. The working temperature range of -40°C~+105°C ensures that the switch panel remains functional in extreme weather conditions, making it ideal for use in both cold and hot environments.

On-Off Switch Operation & Light Sensor

The on-off switch operation provides users with precise control over their lighting and electrical components. Additionally, the optional light sensor feature automatically adjusts the brightness levels based on ambient light conditions, enhancing the overall user experience.

Durability & Design

IP65 Waterproof Rating

The 6 Gang 7 Colors LED Switch Panel features an IP65 waterproof rating, making it resistant to water splashes and dust ingress. This durable design ensures that the switch panel remains protected against harsh environmental conditions, extending its lifespan and reliability.

Red/Green/Blue/7 Color Options

With a choice of red, green, blue, and 7 color options, users can easily customize the appearance of their switch panel to match their personal preferences or vehicle aesthetics. The vibrant LED colors add a touch of style and sophistication to any boat, Jeep, UTV, or caravan.

Slim Touch Control Panel Design

The slim touch control panel offers a sleek and modern appearance, enhancing the overall aesthetic of any vehicle or boat. This compact design allows for easy installation and minimal intrusion into the vehicle's interior, making it an ideal choice for those who value both functionality and style.
