ATS520 Auto Diesel Generator Controller Dual Power Switch ATS Control Module LCD Inligent programmable Panel RS485 ATS520IR

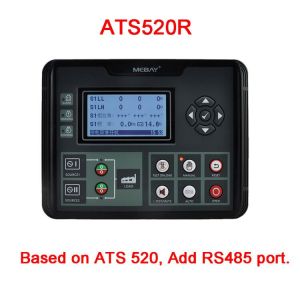

ASATS520IR Diesel Generator Controller Dual Power Switch ATS Control ModuleLCD Display Inligent programmable Panel With RS485Summary:The controller is a dual power switching ATS controller, dual power inligent switch module with programmable, automatic easurement, automatic control and LCD display ftions. Automatic easurement and control can reduce incorrect operation. It is an ideal option for ATS.3.5 inch LCD screen display with brand new UI design is adapted in this controller can display related parameters directly. The LCD screen can display various faults at the same time. Once the generator does not run normally, it can effectively achieve protection. There are Chinese/English inter options, more language can be set according to user’s request. All the parameters can be configured through the front buttons or use programmable inter by RS485 or USB to adjust via PC. It has compact structure, circuits, simple wiring and high reliability, It can be widely used in various types of power systems.Main Features:There are four Models under ATS520 series.ATS 520: Dual power inligent switch module.ATS 520I: Based on ATS 520, it adds power measurement ftion.ATS 520R: Based on ATS 520, it adds RS485 port.ATS 520IR: Based on ATS 520, it adds power measurement ftion and RS485 port.*Dual core 32bit high performance single chip microcomputer. 3.5inch LCD screen, Available in Chinese/English languages, user’s language setif necessary.*System type can set as: "S1 Mains S2 Mains", "S1 Mains, S2 Gen", "S1 Gen S2Mains", "S1 GenS2 Gen".*Acrylic material is adapted to protect the screen. PC material panel, waterproof, oil-proof, UV-resistant, good operation feel andlong service life.*USB Port: parameters can be set even without power through USD port to monitorin real time.*With RS485 communication port, can achieve "Three Remote" ftions viaMODBUS protocol.*S1 / S2 independent over warning or trip alarm ftion. *Collection and display, gen, mains, power, phase and other parameters.*Display S1/S2 Total kW Energy, Total KVAR Energy, Total Close Times.*For Stored-Energy type ATS, its close relay will active after the PF Input is active.*The genset can be Manual Test on site to achieve start/stop operation.*ATS Controller has ftion of automatic Re-closing.*Applicable for PC Three-stage, PC Two-stage, CB and CC switch. *Applicable for 2 isolated neutral line.*Real-time clock (RTC); Event log Ftion (Event log can record 14 items circularly).*Automatic/Manual mode. In manual mode, can force the switch to close or open.*Can control two generators to work as Cycle Run mode, Master Run mode and Balance Run mode.*Suitable for various AC systems (3 phase 4-wires, 3-phase 3-wires, single-phase2-wire, and 2-phase 3-wire).*Input/output ftion, status can be shown directly.*Real time clock inside.*Totally 8 relays output, 6 relays ftion configurable.*Totally 6 configurable switch input, 4 switch ftion configurable. *Control Protection: Realize automatic ATS switching of generator sets, perfect fault display and protection ftions.*Standard water-proof ruer gasket. The waterproof can reach IP54. *Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
