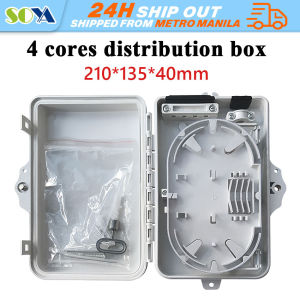

FTTH & 4 Core Fiber Optic Termination Box: A Comprehensive Guide

Understanding the Basics of Fiber Optic Termination Boxes

What is a Fiber Optic Termination Box?

A fiber optic termination box, also known as a FTTH (Fiber To The Home) or FTTX (Fiber To The X) fiber optic box, is a device used to manage and terminate fiber optic cables. It serves as a central point for connecting and distributing optical signals to various devices, such as routers, switches, and other network equipment.

Key Features of Fiber Optic Termination Boxes

Fiber optic termination boxes come with various features that make them ideal for managing fiber optic cables. Some of these features include:

• Compact design: They are typically small and lightweight, making them easy to install and maintain.
• High port density: Some models, like the 4 port optical fiber distribution box, offer multiple ports for connecting fiber optic cables.
• Secure connections: Fiber optic termination boxes provide secure connections, reducing the risk of signal loss or interference.
• Durability: These devices are built to withstand harsh environmental conditions, ensuring reliable performance.

Benefits of Using Fiber Optic Termination Boxes

Using a fiber optic termination box offers several benefits, including:

• Improved network performance: They help maintain optimal signal quality, resulting in faster data transmission speeds.
• Easy installation and maintenance: These boxes simplify the process of connecting and managing fiber optic cables, making it easier to install and maintain networks.
• Cost-effective: By streamlining the management of fiber optic cables, termination boxes can help reduce overall network costs.

Choosing the Right Fiber Optic Termination Box

Factors to Consider When Selecting a Fiber Optic Termination Box

When choosing a fiber optic termination box, consider the following factors:

• Port density: Determine how many ports you need based on the number of devices you want to connect.
• Compatibility: Ensure the box is compatible with your existing fiber optic infrastructure.
• Durability: Choose a termination box that can withstand harsh environmental conditions.

How to Choose Between FTTH & FTTX Fiber Optic Boxes

FTTH fiber optic boxes are specifically designed for residential applications, while FTTX boxes are suitable for both residential and commercial environments. When choosing between the two, consider the specific needs of your network and the environment in which it will be installed.

4 Port Optical Fiber Distribution Box vs. Splitter Box

A 4 port optical fiber distribution box offers multiple ports for connecting fiber optic cables, while a splitter box divides a single optical signal into multiple signals. The choice between the two depends on your specific network requirements.

Installation & Maintenance Tips for Fiber Optic Termination Boxes

How to Install a Fiber Optic Termination Box

Installing a fiber optic termination box involves the following steps:

1. Plan the installation location and route for the fiber optic cables.
2. Connect the fiber optic cables to the termination box using appropriate connectors.
3. Secure the termination box in place using mounting hardware.
4. Test the connections to ensure proper signal transmission.

Maintaining Your Fiber Optic Termination Box

To maintain optimal performance, regularly inspect and clean the termination box and its components. Check for any signs of damage or wear and replace any faulty components as needed.

Troubleshooting Common Issues with Fiber Optic Termination Boxes

Common issues with fiber optic termination boxes include signal loss, interference, and connector problems. To troubleshoot these issues, inspect the connections and components for damage or wear, and replace any faulty parts.

In conclusion, a fiber optic termination box is a crucial component in managing fiber optic cables and maintaining optimal network performance. By choosing the right box and following proper installation and maintenance procedures, you can ensure reliable performance and cost-effective network management.
