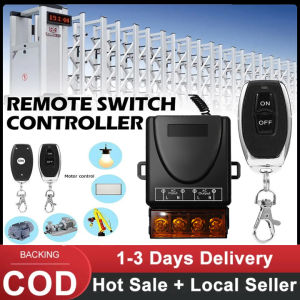

433 Mhz Universal Wireless RF Remote Control Switch Transmitter Receiver with AC 110V 240V 30A Relay for Smart Home Office

Specifications:Remote control TransmitterOperating voltage: DC12V (23A/12V battery x1)Transmitting frequency: 433MHzEncoding Type: Fixed codeReceiver sensitivity: > -105dBTransmission distance : 100M (Open field)Size: approx 552810mmReceiver boardOperating voltage: AC 110V - 240VOutput voltage = Operating voltageOperating frequency: 433MHz(Same with Remote control)Encoding Type: learning code(you can buy extra 315MHz remote controllers for this receiver)Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)Box size: approx 65 x 45 x 28mmInstructions:1. Jog: The remote control is controlled by a button. After pressing the button, the relay is closed, and when the button is released, the relay is disconnected.2. Self-locking: The remote control is controlled by a button. Press the button once to pull in the relay, and press it again to disconnect.3. Interlock: The remote control is controlled by two buttons. Press the A button to close the relay, and press the B button to disconnect.4. Delay: After the pairing is successful, the relay will automatically disconnect after 5 seconds/10 seconds/15 seconds/20 seconds.Learn to code:1. Jog learning method:Press the learning button of the controller once, the indicator light flashes quickly and it is in the learning state, and then press any button of the remote control you want to learn to send a code. At this time, the indicator light flashes three times and goes out, and the code matching is completed.2. Self-locking learning method:Press the controller learning button twice, the indicator light flashes twice quickly in the learning state, and then press any button you want to learn on the remote control to send a code. At this time, the indicator light flashes three times and goes out, and the code matching is completed.3. Interlocking learning method:Press the controller learning button three times, the indicator light flashes three times quickly in the learning state, at this time press the remote control A button, the indicator light flashes three times, and then press the remote control B button again, the indicator flashes three times and goes out, and the code matching is completed .4. Learning method with a 5-second delay:Press the controller learning button four times, the indicator light flashes four times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, the relay will automatically disconnect after 5 seconds of closing.5. Learning method with a 10-second delay:Press the controller learning button five times, the indicator light flashes five times and then press the remote control to send the code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 10 seconds.6. Learning method with 15 seconds delay:Press the controller learning button six times, the indicator light flashes six times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 15 seconds of closing.7. Learning method with a delay of 20 seconds:Press the controller learning button seven times, the indicator light flashes seven times and then press the remote control to send the code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically turn off after being closed for 20 seconds.Clear data:Press and hold the learning button for 8 seconds without letting go, the indicator light flashes once until the receiver indicator flashes 6 times quickly, the code clearing is successfulItem Include:1 x Wireless reveiver1 x 2 button remote control transmitter
