Hikvision TVI-4CH2D2B-2MP Eco 2MP 4CH Digital Video Recorder Kit HDTVI Combo Kit

Introduction

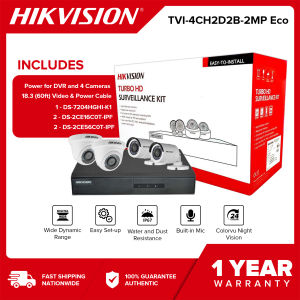

The Hikvision TVI-4CH2D2B-2MP Eco 2MP 4CH Digital Video Recorder Kit HDTVI Combo Kit is a high-quality surveillance system designed for residential and commercial applications. This kit includes a 4-channel DVR (DS-7204HGHI-K1), two 1080p Full HD dome cameras (DS-2CE56D0T-IPF 3.6), two 1080p Full HD bullet cameras (DS-2CE16D0T-IPF 3.6), four 18-meter coaxial cables, and a 4-way splitter with power adapter.

Key Features

• 4 Turbo analog HD/AHD Analog interface input
• 4-ch video & 1-ch audio input
• HD 1080P Lite :25P/30(N) fps/ch
• Support HDTVI/AHD/CVI/CVBS/IP Video input
• Max 800m for 1080P and 1200m for 720p HDTVI signal transmission
• Cable wire: 18.3m or (60ft)

Benefits of the Hikvision TVI-4CH2D2B-2MP Eco Kit

• Easy-to-install components
• High-definition video quality
• Long-distance signal transmission
• Compatibility with various devices
• Network connectivity through LAN

Setup and Installation

Connecting the DVR and Cameras

First, connect the four coaxial cables to the camera inputs on the DVR (DS-7204HGHI-K1). Then, attach the cameras to the coaxial cables using the appropriate connectors. Make sure to secure the cameras in the desired locations before connecting them to the DVR.

Powering the DVR and Cameras

Power the DVR and cameras using the included 4-way splitter power adapter. Connect the power adapter to a nearby electrical outlet, and then connect the power cables from the cameras to the splitter.

Configuring the Hikvision TVI-4CH2D2B-2MP Eco Kit

Once the DVR and cameras are connected, power on the system. Configure the DVR settings according to the user manual, and then set up the cameras to stream video to the DVR. You can also connect the DVR to the network using LAN and access the system remotely through the HIKconnect App.

Performance and Capabilities

Video Resolution and Frame Rate

The Hikvision TVI-4CH2D2B-2MP Eco Kit supports HD 1080P Lite video resolution with 25P/30(N) fps/ch. This provides high-definition video quality for clear surveillance footage.

Signal Transmission Distance

The kit supports long-distance signal transmission, with a maximum of 800m for 1080P and 1200m for 720p HDTVI signal transmission. This allows for installation flexibility and coverage of large areas.

Compatibility with Other Devices

The Hikvision TVI-4CH2D2B-2MP Eco Kit is compatible with various devices, including HDTVI/AHD/CVI/CVBS/IP video inputs. This provides versatility for integration with existing security systems.

Conclusion

Summary of the Hikvision TVI-4CH2D2B-2MP Eco Kit

The Hikvision TVI-4CH2D2B-2MP Eco 2MP 4CH Digital Video Recorder Kit HDTVI Combo Kit offers a comprehensive surveillance solution with high-definition video quality, long-distance signal transmission, and compatibility with various devices. The kit is easy to install and configure, making it ideal for residential and commercial applications.

Final Thoughts on the Hikvision TVI-4CH2D2B-2MP Eco Kit

The Hikvision TVI-4CH2D2B-2MP Eco Kit is a reliable and versatile surveillance system that provides excellent video quality and coverage. With its compatibility with various devices and network connectivity through LAN, this kit is a valuable addition to any security system.
