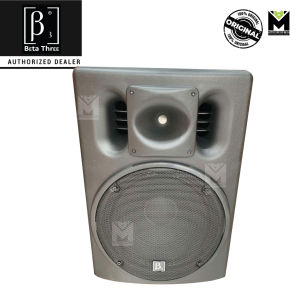

Beta 3 U15A 15inch 400W 2 Way Full Range Powered Loudspeaker

The Beta 3 U15A 15inch 400W 2 Way Full Range Powered Loudspeaker is a high-quality, professional audio equipment designed for both portable and permanent installation applications. This article will explore the key features, specifications, applications, usage scenarios, installation, setup, maintenance, and troubleshooting of this powerful loudspeaker.

Key Features & Specifications

Overview of Beta 3 U15A

The Beta 3 U15A is a 15-inch powered loudspeaker with a rated power of 100W HF and 300W LF (RMS). It features a high output SPL and sensitivity, making it suitable for various applications such as live performances, events, and installations. The speaker comes equipped with a 15-inch high-power transducer with a 50mm voice coil and a 1.7-inch diaphragm compression driver.

Frequency Response & Sound Quality

The frequency response of the Beta 3 U15A is -3dB at 40Hz-18kHz, providing a wide range of sound reproduction. The Max SPL @ 1m is 120dB(PEAK), ensuring clear and powerful sound output. The dispersion pattern is controlled at 50-100° x 55°, allowing for precise coverage in various environments.

Connectivity & Control Options

The Beta 3 U15A offers multiple connectivity options, including 2 x XLR connector inputs and outputs. It has a switchable Mic and Line input, making it versatile for different audio sources. The built-in bi-amp power amplifier module allows for independent control of the bass and treble. Additionally, the speaker features a master volume control and heavy-duty protective grill.

Applications & Usage Scenarios

Portable System (Stand)

The Beta 3 U15A is designed to be portable and easy to set up, making it suitable for live performances, events, and installations. It can be easily mounted on a stand or tripod, allowing for flexible positioning and optimal sound coverage.

Permanent Installation (Wall Mount)

The Beta 3 U15A can also be installed permanently, either wall-mounted or ceiling-mounted. This makes it an ideal solution for venues such as churches, theaters, and concert halls, where high-quality sound reproduction is essential.

Main System with Subwoofer Augmentation

The Beta 3 U15A can be used as a main system with or without subwoofer augmentation. This allows for a wide range of sound reproduction, from clear and crisp high frequencies to deep and powerful low frequencies.

Installation & Setup

Placement & Orientation

When setting up the Beta 3 U15A, it is essential to consider the placement and orientation of the speaker. The speaker should be positioned at ear level or slightly above to ensure optimal sound coverage. The dispersion pattern should be adjusted to match the room's acoustics and audience positioning.

Input Source Selection

The Beta 3 U15A offers multiple input options, including Mic and Line inputs. It is crucial to select the appropriate input source based on the audio signal being used. For example, if using a microphone, the Mic input should be selected, while if using a line-level signal, the Line input should be chosen.

Volume & EQ Adjustments

The Beta 3 U15A features a master volume control and independent bass and treble controls. These controls allow for precise adjustments to the sound output, ensuring optimal sound quality for any application.

Maintenance & Troubleshooting

Cleaning & Protection

To maintain the Beta 3 U15A, it is essential to clean the protective grill regularly and store the speaker in a dry and dust-free environment. This will help prevent damage and prolong the life of the speaker.

Common Issues & Solutions

Some common issues that may occur with the Beta 3 U15A include distortion, feedback, and low volume output. These issues can be resolved by adjusting the input source, EQ settings, and volume control.

Warranty & Support

The Beta 3 U15A comes with a warranty and support from the manufacturer. It is essential to keep the warranty card and contact the manufacturer if any issues arise during the warranty period.
