Clutch Disassembly Equipment: A Comprehensive Guide

Introduction to Clutch Alignment Dismantle Tool

A clutch alignment dismantle tool is a versatile automotive repair tool designed to facilitate the disassembly and reassembly of clutches in various vehicles. It allows mechanics and DIY enthusiasts to easily align single plate clutches, lock the clutch disk, and install sleeve anchors. This guide will provide a comprehensive overview of the Clutch Alignment Dismantle Tool, including its package contents, key features, and how to use it effectively.

What is Clutch Alignment Dismantle Tool?

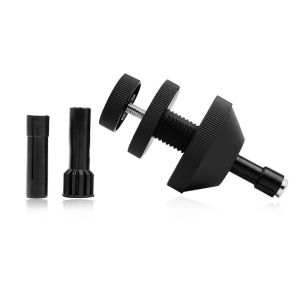

The Clutch Alignment Dismantle Tool is a high-quality, black-colored plastic device specifically designed for the disassembly and reassembly of car clutches. Its primary function is to assist users in aligning single plate clutches, locking the clutch disk, and installing sleeve anchors, making the process quick and easy.

Package Included & Key Features

• Package Contents: 1Pcs Clutch Alignment Dismantle Tool
• Features:
  • 100% brand new and high quality
  • Easy alignment of single plate clutches
  • Universal device for locking the clutch disk
  • Two sleeve anchors for different diameters of the bearings embedded in the crankshaft
  • One strut sleeve with a wide range of adjustment for the shaft without shaft support bearing clutch
  • Manual fixing (centering) and applying the clutch disc to the pressure plate in cars and trucks during installation
  • Suitable for most cars and light trucks except vehicles with double plate clutches, also suitable for flywheels with no pilot bearing

How to Use Clutch Alignment Dismantle Tool

Aligning Single Plate Clutches

To align single plate clutches using the Clutch Alignment Dismantle Tool, follow these steps:

1. Place the clutch alignment tool on a flat surface.
2. Position the clutch plate and pressure plate on the tool.
3. Align the clutch plate and pressure plate using the tool's built-in guides.

Locking the Clutch Disk

Locking the clutch disk is an essential step in the disassembly and reassembly process. Follow these steps to lock the clutch disk:

1. Insert the locking device into the clutch disk.
2. Rotate the locking device until it engages with the clutch disk.
3. Ensure that the locking device is securely fastened to the clutch disk.

Installing the Sleeve Anchors

Installing the sleeve anchors is crucial for ensuring proper alignment and functionality of the clutch. Follow these steps to install the sleeve anchors:

1. Choose the appropriate sleeve anchor for the bearing diameter.
2. Insert the sleeve anchor into the crankshaft bearing.
3. Secure the sleeve anchor in place.

Advantages of Clutch Alignment Dismantle Tool

Using the Clutch Alignment Dismantle Tool offers several advantages, including:

• Quick & Easy Installation: The tool simplifies the disassembly and reassembly process, allowing users to quickly and easily align single plate clutches, lock the clutch disk, and install sleeve anchors.
• Suitable for Most Cars & Light Trucks: The tool is compatible with most cars and light trucks, except those with double plate clutches.
• Manual Fixing & Centering: Users can manually fix and center the clutch disc to the pressure plate during installation, ensuring proper alignment and functionality.

Conclusion

The Clutch Alignment Dismantle Tool is an essential automotive repair tool for anyone working on car clutches. With its easy-to-use design and versatile features, it simplifies the disassembly and reassembly process, making it ideal for both professional mechanics and DIY enthusiasts. Whether you're repairing a single plate clutch or installing sleeve anchors, the Clutch Alignment Dismantle Tool is the perfect solution.
