SHEHDS DMX512 Wireless Receiver & Portable Party DJ Show

What is the SHEHDS DMX512 Wireless Receiver?

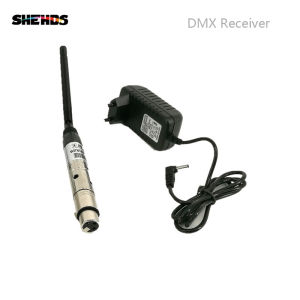

The SHEHDS DMX512 Wireless Receiver is a cutting-edge 2.4G ISM wireless controller designed specifically for Disco KTV stage light and portable party DJ show applications. This versatile device supports 126 channels of jumping frequency automatically, ensuring high anti-jamming ability and reliable operation. With a maximum communication distance of 300 meters (visible distance), the SHEHDS DMX512 Wireless Receiver offers a powerful solution for lighting fixture control.

Key Features

• 126 Channels Jumping Frequency: Automatically selects the optimal frequency to avoid interference and ensure reliable operation.
• High Anti-Jamming Ability: Designed to withstand electromagnetic interference, ensuring smooth performance even in crowded environments.
• 7 Groups ID Code Settable: Allows users to configure up to seven individual wireless networks, eliminating interference between devices in the same location.
• Input Voltage: Requires a minimum of 5VDC at 500mA.
• Communication Distance: Up to 300 meters (visible distance).
• Work Frequency Section: Operates within the 2.4G ISM frequency range.
• Max Transmitting Power Rate: Capable of delivering up to 20dBm of power.

Technical Specifications

• Channels: 126
• Frequency Section: 2.4G ISM
• Max Transmitting Power Rate: 20dBm
• Input Voltage: 5VDC, 500mA
• Communication Distance: 300 meters (visible distance)
• ID Codes: 7 groups settable

How to Set Up Your SHEHDS DMX512 Wireless Receiver

Setting up your SHEHDS DMX512 Wireless Receiver is a straightforward process. Follow these steps to ensure optimal performance:

Connecting the DMX512 Receiver & Transmitter

1. Connect the transmitter to your lighting fixture using the provided cable.
2. Power on both the receiver and transmitter.
3. Verify that the tricolor LED indicators on both devices display a steady green light, indicating successful communication.

Configuring the ID Code Settable

To configure the ID code settable, follow these steps:

1. Press and hold the "ID" button on the receiver until the LED indicator flashes red.
2. Release the button and enter the desired ID code using the up/down buttons.
3. Press the "OK" button to confirm the new ID code.

Enhancing Your Party DJ Show with SHEHDS DMX512 Wireless Receiver

Maximize the potential of your portable party DJ show by leveraging the SHEHDS DMX512 Wireless Receiver's advanced features:

Improving Anti-Jamming Ability

To improve anti-jamming ability, ensure that your receiver and transmitter are positioned away from potential sources of interference, such as Wi-Fi routers or Bluetooth devices. Additionally, configure the ID code settable to avoid overlapping frequencies with other wireless devices in the area.

Maximizing Communication Distance

To maximize communication distance, position the receiver and transmitter in line-of-sight with each other. Avoid placing obstacles, such as walls or furniture, between the two devices. If necessary, use the included antenna to extend the range of your wireless network.

Troubleshooting Common Issues

Encountering issues with your SHEHDS DMX512 Wireless Receiver? Here are some common problems and their solutions:

Dealing with Interference

If you experience interference, try repositioning your receiver and transmitter away from potential sources of electromagnetic interference. Additionally, configure the ID code settable to avoid overlapping frequencies with other wireless devices in the area.

Addressing Connectivity Problems

If you encounter connectivity problems, ensure that both the receiver and transmitter are powered on and within the maximum communication distance. Verify that the tricolor LED indicators on both devices display a steady green light, indicating successful communication. If necessary, reset both devices by pressing and holding the "Reset" button for five seconds.
