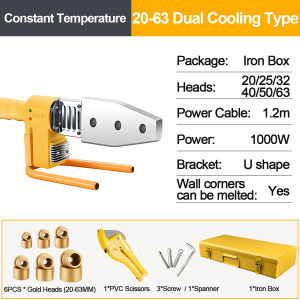

【With Free PPR Cutter+Iron Case】800W/1000W PPR Heater Fusion Machine With Mould Size 20-63mm PVC Heavy Duty Pipe Fusion Welding Machine Kit Heating Tool Heads Set For PPR PB PE Plastic Tube PPR

Specifications:Product Name: Pipe Welding Machine KitType: 800W/1000WMaterial: MetalColor: YellowCord length:1.2mPlug: EU PlugHeating Speed: 1 MinFit For: PPR / PB / PE PipeRelative Humidity: 45% to 95%Heating temp:260℃Heating Temp: 0 ~ 320℃ / 32 ~ 608℉Ambient Temperature: -20 ~ 50℃ / -4 ~ 122℉Temp Control: Auto Temperature Control800W-3Welding Heads (20mm 25mm 32mm)1000W-6Welding Heads(20mm 25mm 32mm 40mm 50mm 63mm)Instruction:Install the heatsink on the fixed welding device, place the welding device on the rack, install the corresponding heating die according to the required pipe specifications, and use the spanner to tighten, usually small in the front end in the back.Power on: power on (pay attention to the power must be with a ground protection line), the green indicator light, until the green light is off, the red light is on, indicating that the fuse into the automatic temperature control state, you can start operation. Note: In the automatic temperature control state, red light, green light will be alternately lit, indicating that the fuse is in a controlled state, does not affect the operation.Welded pipe: pipe cutter with a straight cut off the pipe, the pipe and pipe at the same time without rotating into the fuse die, and in accordance with the requirements of the table to operate, to the heating time immediately after the pipe and pipe removed from the die at the same time , Quickly and without rotation directly into the required depth of uniform, so that the joints open into uniform flangePackage list:【800W】1PPR FUSION MACHINE3Welding Heads (20mm 25mm 32mm)3Screw1Professional PVC Scissors1Spanner1Support Shelf1Iron Box【1000W】1PPR FUSION MACHINE6Welding Heads(20mm 25mm 32mm 40mm 50mm 63mm)3Screw1Professional PVC Scissors1Spanner1Support Shelf1Iron Box
