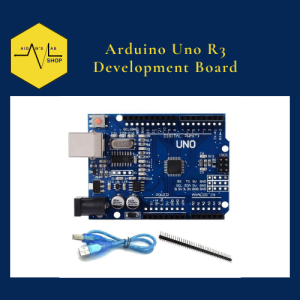

Arduino Uno R3 Development Board - SMD with Power supply cable | CH340G | Aidans Lab
Arduino UNO SMD is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.The "SMD" stands for surface-mount device, and the microcontroller (ATmega328p) is soldered directly to the board.Tech SpecsMicrocontroller : ATmega328PUSB connector : USB-BPins : Built-in LED Pin (13) : Digital I/O Pins (14) : Analog input pins (6) : PWM pins (6)Communication : UART - YES : I2C - YES : SPI - YESPower : I/O Voltage - 5V : Input voltage (nominal) - 7~12V : DC Current per I/O Pin - 20 mA : Power Supply Connector - Barrel PlugClock speed : Main Processor - ATmega328P 16 MHz : USB-Serial Processor - ATmega16U2 16 MHzMemory : ATmega328P - 2KB SRAM, 32KB FLASH, 1KB EEPROMDimensions : 53.4 mm x 68.6 mm; 25g
Aidan's Lab Electronics
You May Also Like
Supertools 500A Hydraulic Cable Crimper – 20 Tons Crimping Plier (Black/Yellow)
ZOLELE C1 Floor Scrub Brush V-Shaped 2in1 Cleaning Brush For Bathroom Tub Tile Floor
1Pcs Universal Bathroom Flexible Pipe Sink Basin Water Drain Hose Tube Can Be Lengthened Kitchen Apply
65mm Slotted Frame Rail Floor Jack Lift Rubber Pad Pinch Weldside Jack Pad
NEXASHOP Soft Cord Cover 1m/2m PVC Wire Cover High Quality Flexible Floor Cable Cover Floor

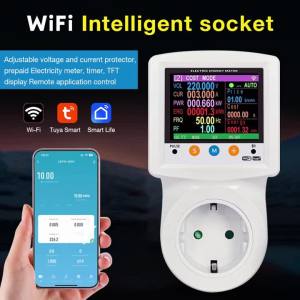

juan juan | WiFi Smart Socket Energy Meter 16A Tuya Smart Plug with Voltage Current Protection Timer Power Monitor Remote Control

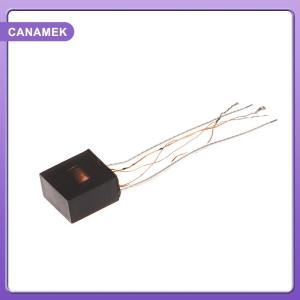

【CANAMEK】 1Pcs 15KV Arc Ignition High Voltage Inverter Step Up Booster Coil Transformer Module Pulse Ignition
